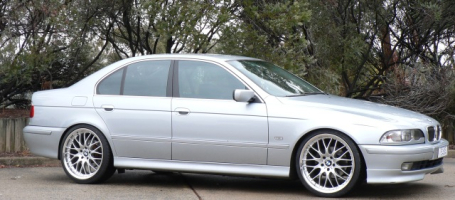

BMW - E39 5 Series (1996 - 2004)

E39 5 Series (1996 - 2004)
Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes
  • PFF5-501 is fitted on 535, 540 and M5
  • PFF5-510 is fitted on 520 to 530 and Z8
  • PFF5-502 fits models with steel sub frames only (M5 & V8 engined models)
  • PFF5-511 fits models with cast alloy sub frames (6 cylinder models)
  • PFF5-4602-24/25 is fitted on vehicles with M Sport II suspension
  • PFR5-504-165 is fitted to the M5 with a 16.5mm rear ARB.

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.

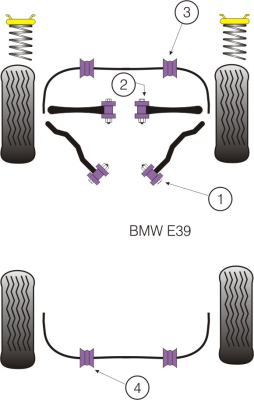

Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Lower Tie Bar To Chassis Bush Front Lower Tie Bar To Chassis Bush 2 1 PFF5-501
Ex. VAT:   £23.27
Inc. VAT:   £27.92
Front Lower Tie Bar To Chassis Bush Front Lower Tie Bar To Chassis Bush 2 1 PFF5-510
Ex. VAT:   £24.15
Inc. VAT:   £28.98
Front Inner Track Control Arm Bush Front Inner Track Control Arm Bush 2 2 PFF5-502
Ex. VAT:   £22.94
Inc. VAT:   £27.53
Front Inner Track Control Arm Bush Front Inner Track Control Arm Bush 2 2 PFF5-511
Ex. VAT:   £21.89
Inc. VAT:   £26.27
Front Anti Roll Bar Bush 23mm Front Anti Roll Bar Bush 23mm 2 3 PFF5-4602-23
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Front Anti Roll Bar Bush 24mm Front Anti Roll Bar Bush 24mm 2 3 PFF5-4602-24
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Front Anti Roll Bar Bush 25mm Front Anti Roll Bar Bush 25mm 2 3 PFF5-4602-25
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Front Anti Roll Bar Mounting Bush 27mm Front Anti Roll Bar Mounting Bush 27mm 2 3 PFF5-4602-27
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Front Anti Roll Bar Mounting Bush 22.5mm Front Anti Roll Bar Mounting Bush 22.5mm 2 3 PFF5-503-225
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Mounting Bush 24mm Front Anti Roll Bar Mounting Bush 24mm 2 3 PFF5-503-24
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Mounting Bush 25mm Front Anti Roll Bar Mounting Bush 25mm 2 3 PFF5-503-25
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Mounting Bush 27mm Front Anti Roll Bar Mounting Bush 27mm 2 3 PFF5-503-27
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar Mounting Bush 13mm Rear Anti Roll Bar Mounting Bush 13mm 2 4 PFR5-504-13
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar Mounting Bush 14mm Rear Anti Roll Bar Mounting Bush 14mm 2 4 PFR5-504-14
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Roll Bar Mounting Bush 15mm Rear Roll Bar Mounting Bush 15mm 2 4 PFR5-504-15
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Roll Bar Mounting Bush 16.5mm Rear Roll Bar Mounting Bush 16.5mm 2 4 PFR5-504-165
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Bump Stop Kit Bump Stop Kit
Fitting instructions Click for fitting instructions 		1 BS2003K
Ex. VAT:   £29.95
Inc. VAT:   £35.94
