20/05/2013

Nissan - 200SX - S13 & S14

200SX - S13 & S14

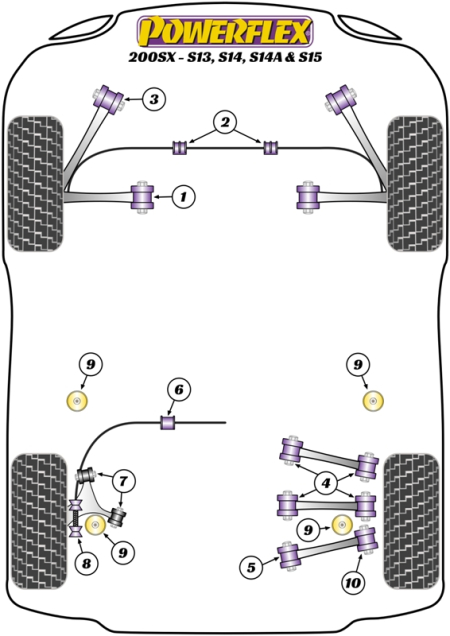

Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes

  • The Front Inner Track Control Arm Bush Is available in 2 different diameters PFF46-201 is 35mm and PFF46-221 at 31.6mm.
  • PFR46-203 - S13 only, PFR46-210 - S14 only
  • PFR46-203 measures 45mm long 33mm diameter, PFR46-210 is 50mm long 31.25mm diameter please check original bush dimensions before ordering
  • PFR46-204G are on car adjustable bushes to replace all the rear upper arm bushes allowing camber adjustment of +/-1.5 deg.
  • PFR46-204 are non adjustable bushes.

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Inner Track Control Arm Bush Front Inner Track Control Arm Bush 2 1 PFF46-201
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Front Inner Track Control Arm Bush Front Inner Track Control Arm Bush 2 1 PFF46-221
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Front Anti Roll Bar Mount 25mm Front Anti Roll Bar Mount 25mm 2 2 PFF46-202-25
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Antil Roll Bar Mount 27mm Front Antil Roll Bar Mount 27mm 2 2 PFF46-202-27
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Lower Radius Arm To Chassis Front Lower Radius Arm To Chassis 2 3 PFF46-218
Ex. VAT:   £33.55
Inc. VAT:   £40.26
Rear Link Bushes Rear Link Bushes 8 4 PFR46-204
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Upper Arm Bush - Camber Adjust Rear Upper Arm Bush - Camber Adjust
Fitting instructions Click for fitting instructions 		8 4 PFR46-204G
Ex. VAT:   £23.05
Inc. VAT:   £27.66
Rear Toe Link Inner Bush Rear Toe Link Inner Bush 2 5 PFR46-205
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Anti Roll Bar Bush 15mm Rear Anti Roll Bar Bush 15mm 2 6 PFR46-206-15
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar Bush 18mm Rear Anti Roll Bar Bush 18mm 2 6 PFR46-206-18
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Trailing Arm Bushes Rear Trailing Arm Bushes 4 7 PFR46-203
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Trailing Arm Bushes Rear Trailing Arm Bushes 4 7 PFR46-210
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Anti Roll Bar Link Kit Rear Anti Roll Bar Link Kit 2 8 PFR46-207
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Rear Beam Mounting Bushes Rear Beam Mounting Bushes 4 9 PFR46-212
Ex. VAT:   £21.89
Inc. VAT:   £26.27
Rear Beam Bush Insert kit Rear Beam Bush Insert kit 4 9 PFR46-215
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Toe Link Outer Bush Rear Toe Link Outer Bush 2 10 PFR46-208
Ex. VAT:   £19.58
Inc. VAT:   £23.50
