Caterham - 7 (DeDion Without Watts Linkage)

7 (DeDion Without Watts Linkage)
Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes

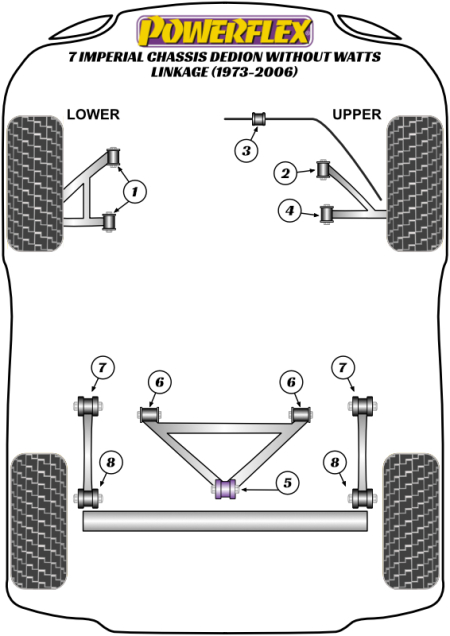

  • Drawing referance no.5, Vehicles to 1996 use PF8-903, Vehicles after 1996 use PF8-907

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Large Lower Wishbone Bush 1/2" Bore Large Lower Wishbone Bush 1/2" Bore 4 1 PF8-901
Ex. VAT:   £19.90
Inc. VAT:   £23.88
Small Upper Wishbone Front Bush Small Upper Wishbone Front Bush 2 2 PF8-902
Ex. VAT:   £20.95
Inc. VAT:   £25.14
Front Anti Roll Bar Bush 14.5mm Front Anti Roll Bar Bush 14.5mm 2 3 PF8-905-14.5
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Bush 19mm Front Anti Roll Bar Bush 19mm 2 3 PF8-905-19
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Large Upper Wishbone Rear Bush Large Upper Wishbone Rear Bush 2 4 PF8-904
Ex. VAT:   £19.90
Inc. VAT:   £23.88
DeDion "A" Frame Centre Bush DeDion "A" Frame Centre Bush 1 5 PF8-903
Ex. VAT:   £11.50
Inc. VAT:   £13.80
DeDion "A" Frame Centre Bush DeDion "A" Frame Centre Bush 1 5 PF8-907
Ex. VAT:   £19.90
Inc. VAT:   £23.88
DeDion "A" Frame Mounting Bush DeDion "A" Frame Mounting Bush 2 6 PF8-901
Ex. VAT:   £19.90
Inc. VAT:   £23.88
Rear Axle Link Front Bush Rear Axle Link Front Bush 2 7 PF8-902
Ex. VAT:   £20.95
Inc. VAT:   £25.14
Rear Axle Link Rear Bush 1/2" Bore Rear Axle Link Rear Bush 1/2" Bore 2 8 PF8-901
Ex. VAT:   £19.90
Inc. VAT:   £23.88
