25/05/2013

Vauxhall / Opel - ASTRA MODELS - Astra MK3 - Astra F (1991-1998)

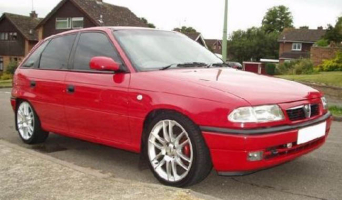

Astra MK3 - Astra F (1991-1998)
Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes

  • Please Check Anti Roll Bar Sizes Before Ordering



Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.

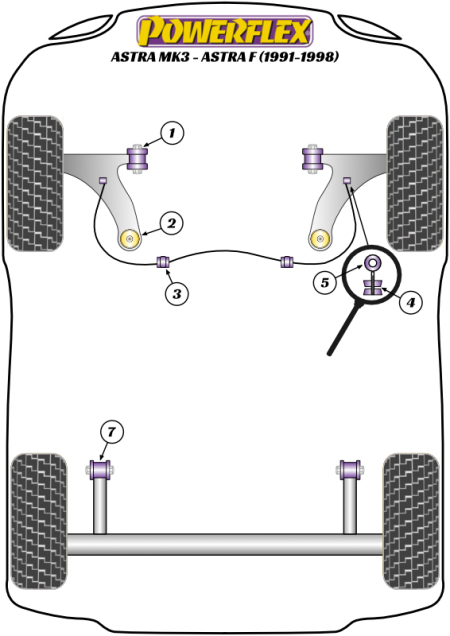

Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Wishbone Inner Bush (front) Front Wishbone Inner Bush (front) 2 1 PFF80-401
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Front Wishbone Inner Bush (rear) Front Wishbone Inner Bush (rear) 2 2 PFF80-402
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Front Anti Roll Bar Mount 20mm Front Anti Roll Bar Mount 20mm 2 3 PFF80-403-20
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Mount 22mm Front Anti Roll Bar Mount 22mm 2 3 PFF80-403-22
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Mount 24mm Front Anti Roll Bar Mount 24mm 2 3 PFF80-403-24
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Mounting Bolt Bushes Front Anti Roll Bar Mounting Bolt Bushes 2 4 PFF80-408
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Eye Bolt Bush 20mm Front Anti Roll Bar Eye Bolt Bush 20mm 2 5 PFF80-409-20
Ex. VAT:   £11.51
Inc. VAT:   £13.81
Front Anti Roll Bar Eye Bolt Bush 22mm Front Anti Roll Bar Eye Bolt Bush 22mm 2 5 PFF80-409-22
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Eye Bolt Bush 24mm Front Anti Roll Bar Eye Bolt Bush 24mm 2 5 PFF80-409-24
Ex. VAT:   £11.51
Inc. VAT:   £13.81
Rear Beam Mounting Bush Rear Beam Mounting Bush 2 7 PFR80-412
Ex. VAT:   £21.89
Inc. VAT:   £26.27
Rear Anti Roll Bar Mount (inner) 15mm Rear Anti Roll Bar Mount (inner) 15mm 2 8 PFR80-415-15
Ex. VAT:   £12.65
Inc. VAT:   £15.18
Rear Anti Roll Bar Mount (inner) 20mm Rear Anti Roll Bar Mount (inner) 20mm 2 8 PFR80-415-20
Ex. VAT:   £12.65
Inc. VAT:   £15.18
Bump Stop Kit Bump Stop Kit
Fitting instructions Click for fitting instructions 		1 BS2002K
Ex. VAT:   £20.95
Inc. VAT:   £25.14
