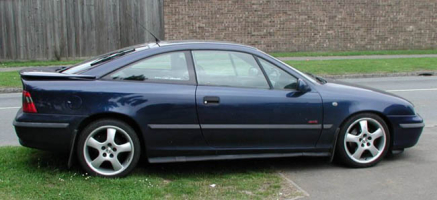

Vauxhall / Opel - Cavalier/Calibra 4WD inc GSi with independent rear suspension, Vectra A (1989-1995)

Cavalier/Calibra 4WD inc GSi with independent rear suspension, Vectra A (1989-1995)

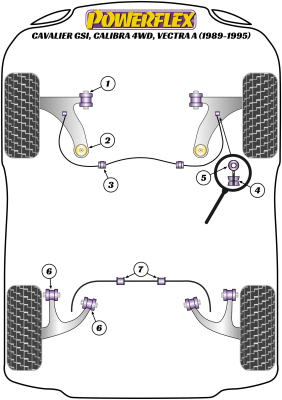

Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes

  • Cavalier GSI Has The Same Independant Rear Suspension Set-Up As 4x4 Models
  • PFR80-440MLK are eccentric bushes which allow for geometry adjustment of the rear trailing arms on lowered vehicles. If you require this option you will need to purchase 2 x PFR80-440's and 2 x PFR80-440MLK's.
  • If you do not require geometry adjustment of the rear trailing arms, then you would need to purchase 4 x PFR80-440's.
  • Please Check Catalogue Page For Information Regarding Front and Rear Roll Bar Mounts



Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Wishbone Inner Bush (front) Front Wishbone Inner Bush (front) 2 1 PFF80-401
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Front Wishbone Inner Bush (rear) Front Wishbone Inner Bush (rear) 2 2 PFF80-402
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Front Anti Roll Bar Mount 20mm Front Anti Roll Bar Mount 20mm 2 3 PFF80-403-20
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Mount 22mm Front Anti Roll Bar Mount 22mm 2 3 PFF80-403-22
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Mount 24mm Front Anti Roll Bar Mount 24mm 2 3 PFF80-403-24
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Mounting Bolt Bushes Front Anti Roll Bar Mounting Bolt Bushes 2 4 PFF80-408
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Eye Bolt Bush 20mm Front Anti Roll Bar Eye Bolt Bush 20mm 2 5 PFF80-409-20
Ex. VAT:   £11.51
Inc. VAT:   £13.81
Front Anti Roll Bar Eye Bolt Bush 22mm Front Anti Roll Bar Eye Bolt Bush 22mm 2 5 PFF80-409-22
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Anti Roll Bar Eye Bolt Bush 24mm Front Anti Roll Bar Eye Bolt Bush 24mm 2 5 PFF80-409-24
Ex. VAT:   £11.51
Inc. VAT:   £13.81
Rear Trailing Arm Bush Rear Trailing Arm Bush 2 6 PFR80-440
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Trailing Arm Bush Rear Trailing Arm Bush 2 6 PFR80-440MLK
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Anti Roll Bar Mount (Inner) 14.5mm Rear Anti Roll Bar Mount (Inner) 14.5mm 2 7 PFR80-416-14.5
Ex. VAT:   £12.65
Inc. VAT:   £15.18
Rear Anti Roll Bar Mount (inner) 15mm Rear Anti Roll Bar Mount (inner) 15mm 2 7 PFR80-415-15
Ex. VAT:   £12.65
Inc. VAT:   £15.18
Rear Anti Roll Bar Mount (inner) 18mm Rear Anti Roll Bar Mount (inner) 18mm 2 7 PFR80-415-18
Ex. VAT:   £12.65
Inc. VAT:   £15.18
