Seat - Cordoba (1993-2002)

Cordoba (1993-2002)
Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes
  • PFF85-208 Fits 12mm link rods with 19mm nut, PFF85-208-10 fits 10mm link rods with 13mm nut.
  • Measure anti roll bar where bush sits as bar diameter varies along the length
  • Part Number PFR85-915 is for model years 1997 to 2002 and is 72.5mm in diameter
  • Part Number PFR85-615 is for model years 1993 to 1999 and is 57.75mm in diameter
  • For power steering mount bushes please measure the width of bracket and select the correct part number.
                  PFF85-232 is suitable for vehicles with a 18.5mm wide bracket.

                  PFF85-233 is suitable for vehicles with a 15mm wide bracket.

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.

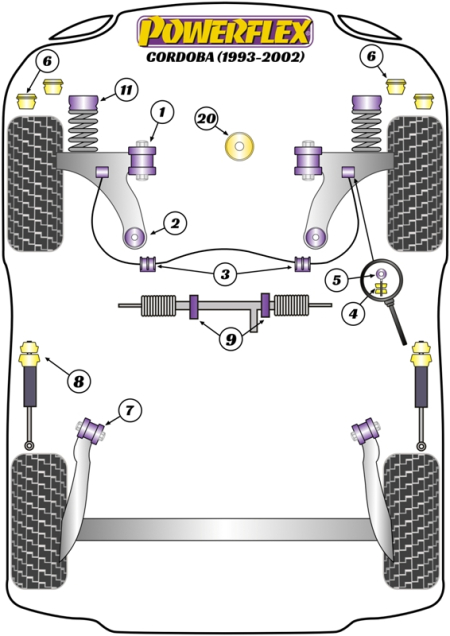

Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Wishbone Front Bush Front Wishbone Front Bush 2 1 PFF85-201
Ex. VAT:   £19.31
Inc. VAT:   £23.17
Front Wishbone Rear Bush Front Wishbone Rear Bush 2 2 PFF85-204
Ex. VAT:   £18.95
Inc. VAT:   £22.74
Front Anti Roll Bar Mount Front Anti Roll Bar Mount 2 3 PFF85-205
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Bush 20mm Front Anti Roll Bar Bush 20mm 2 3 PFF85-205-20
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Eye Bolt Mounting Bush Front Eye Bolt Mounting Bush 2 4 PFF85-208
Ex. VAT:   £13.60
Inc. VAT:   £16.32
Front Eye Bolt Mounting Bush 10mm Front Eye Bolt Mounting Bush 10mm 2 4 PFF85-208-10
Ex. VAT:   £13.60
Inc. VAT:   £16.32
Front Anti Roll Bar Eye Bolt Bush 18mm Front Anti Roll Bar Eye Bolt Bush 18mm 2 5 PFF85-209
Ex. VAT:   £14.25
Inc. VAT:   £17.10
Front Anti Roll Bar Eye Bolt Bush 20mm Front Anti Roll Bar Eye Bolt Bush 20mm 2 5 PFF85-209-20
Ex. VAT:   £14.25
Inc. VAT:   £17.10
Front Subframe Mounts Front Subframe Mounts 4 6 PFF85-250
Ex. VAT:   £7.36
Inc. VAT:   £8.83
Rear Beam Mounting Bush Rear Beam Mounting Bush 2 7 PFR85-615
Ex. VAT:   £27.67
Inc. VAT:   £33.20
Rear Beam Mounting Bush Rear Beam Mounting Bush 2 7 PFR85-915
Ex. VAT:   £27.67
Inc. VAT:   £33.20
Rear Shock Top Mounting Bush Rear Shock Top Mounting Bush 2 8 PFR85-240
Ex. VAT:   £13.95
Inc. VAT:   £16.74
Power Steering Rack Mount Power Steering Rack Mount 1 9 PFF85-232
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Non Power Steering Rack Mount Non Power Steering Rack Mount 2 9 PFF85-231
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Power Steering Rack Mount Power Steering Rack Mount 1 9 PFF85-233
Ex. VAT:   £11.50
Inc. VAT:   £13.80
