20/05/2013

BMW - E90, E91, E92 & E93 3 Series (2005-2013) - E90, E91, E92 & E93 3 Series (2005-2013)

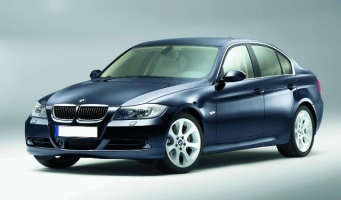

E90, E91, E92 & E93 3 Series (2005-2013)

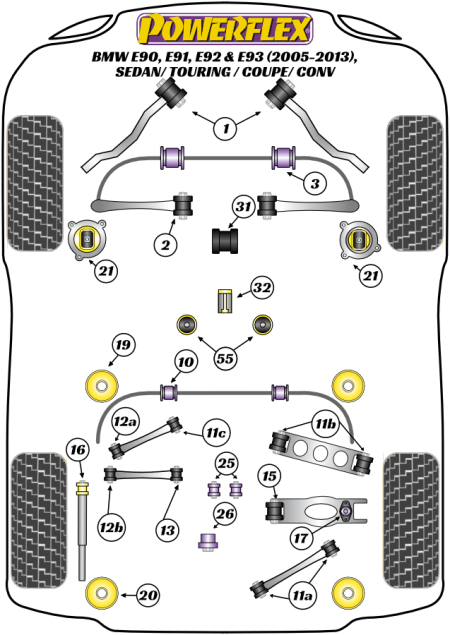

Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes
  • These Bushes Do Not Fit The M3 or X Drive (4wd) Models
  • PFR5-419, PFR5-421 and PFR5-423’s are inserts to be used with the original bushes
  • PFR5-420 and PFR5-422’s are complete bushes and used to replace the original bushes
  • PFR5-421 Inserts fit petrol models only, and do not fit Touring E91 models.
  • PFR5-423 Fits diesel cars and all petrol and diesel E91 Touring models.
  • PFR5-416-12 fits performance shock absorber which has 12mm thread
  • For standard shock absorbers and performance shock absorber with a 10mm thread use PFR5-416

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Radius Arm To Chassis Bush Front Radius Arm To Chassis Bush 2 1 PFF5-401
Ex. VAT:   £31.45
Inc. VAT:   £37.74
Front Control Arm To Chassis Bush Front Control Arm To Chassis Bush
Fitting instructions Click for fitting instructions 		2 2 PFF5-402
Ex. VAT:   £56.65
Inc. VAT:   £67.98
Front Anti Roll Bar Mounting Bush 26.5mm Front Anti Roll Bar Mounting Bush 26.5mm 2 3 PFF5-4602-26.5
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Rear Anti Roll Bar Mounting Bush 11mm Rear Anti Roll Bar Mounting Bush 11mm 2 10 PFR5-4609-11
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Rear Anti Roll Bar Mounting Bush 12mm Rear Anti Roll Bar Mounting Bush 12mm 2 10 PFR5-4609-12
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Rear Anti Roll Bar Mounting Bush 13mm Rear Anti Roll Bar Mounting Bush 13mm 2 10 PFR5-4609-13
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Rear Anti Roll Bar Mounting Bush 14mm Rear Anti Roll Bar Mounting Bush 14mm 2 10 PFR5-4609-14
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Rear Anti Roll Bar Mounting Bush 15mm Rear Anti Roll Bar Mounting Bush 15mm 2 10 PFR5-4609-15
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Rear Toe Adjust Arm Inner & Outer Bush Rear Toe Adjust Arm Inner & Outer Bush
Fitting instructions Click for fitting instructions 		4 11a PFR5-411
Ex. VAT:   £30.98
Inc. VAT:   £37.18
Rear Trailing Arm Inner & Outer Bush Rear Trailing Arm Inner & Outer Bush
Fitting instructions Click for fitting instructions 		4 11b PFR5-411
Ex. VAT:   £30.98
Inc. VAT:   £37.18
Rear Upper Control Arm To Chassis Bush Rear Upper Control Arm To Chassis Bush
Fitting instructions Click for fitting instructions 		2 11c PFR5-411
Ex. VAT:   £30.98
Inc. VAT:   £37.18
Rear Upper Control Arm To Hub Bush Rear Upper Control Arm To Hub Bush
Fitting instructions Click for fitting instructions 		2 12a PFR5-412
Ex. VAT:   £31.45
Inc. VAT:   £37.74
Rear Upper Lateral Arm To Hub Bush Rear Upper Lateral Arm To Hub Bush
Fitting instructions Click for fitting instructions 		2 12b PFR5-412
Ex. VAT:   £31.45
Inc. VAT:   £37.74
Rear Upper Lateral Arm To Chassis Bush Rear Upper Lateral Arm To Chassis Bush
Fitting instructions Click for fitting instructions 		2 13 PFR5-413
Ex. VAT:   £41.95
Inc. VAT:   £50.34
Rear Lower Lateral Arm To Hub Bush Rear Lower Lateral Arm To Hub Bush
Fitting instructions Click for fitting instructions 		2 14 PFR5-414
Ex. VAT:   £41.95
Inc. VAT:   £50.34
Rear Lower Lateral Arm To Chassis Bush Rear Lower Lateral Arm To Chassis Bush 2 15 PFR5-415
Ex. VAT:   £26.20
Inc. VAT:   £31.44
Rear Shock Absorber Upper Mounting Bush Rear Shock Absorber Upper Mounting Bush 2 16 PFR5-416
Ex. VAT:   £20.95
Inc. VAT:   £25.14
Rear Shock Absorber Upper Mounting Bush 12mm Rear Shock Absorber Upper Mounting Bush 12mm 2 16 PFR5-416-12
Ex. VAT:   £20.95
Inc. VAT:   £25.14
Rear Subframe Front Mount Insert Rear Subframe Front Mount Insert
Fitting instructions Click for fitting instructions 		2 19 PFR5-419
Ex. VAT:   £23.05
Inc. VAT:   £27.66
Rear Subframe Front Mounting Bush Rear Subframe Front Mounting Bush
Fitting instructions Click for fitting instructions 		2 19 PFR5-420
Ex. VAT:   £52.45
Inc. VAT:   £62.94
Rear Subframe Rear Mounting Insert Rear Subframe Rear Mounting Insert
Fitting instructions Click for fitting instructions 		2 20 PFR5-421
Ex. VAT:   £23.05
Inc. VAT:   £27.66
Rear Subframe Rear Mounting Bush Rear Subframe Rear Mounting Bush
Fitting instructions Click for fitting instructions 		2 20 PFR5-422
Ex. VAT:   £45.10
Inc. VAT:   £54.12
Rear Subframe Rear Mounting Insert Rear Subframe Rear Mounting Insert
Fitting instructions Click for fitting instructions 		2 20 PFR5-423
Ex. VAT:   £23.05
Inc. VAT:   £27.66
Rear Diff Front Mounting Bush Rear Diff Front Mounting Bush
Fitting instructions Click for fitting instructions 		2 25 PFR5-425
Ex. VAT:   £27.25
Inc. VAT:   £32.70
Rear Diff Rear Mounting Bush Rear Diff Rear Mounting Bush
Fitting instructions Click for fitting instructions 		1 26 PFR5-426
Ex. VAT:   £28.30
Inc. VAT:   £33.96
