Seat - Ibiza 6K (1993-2002)

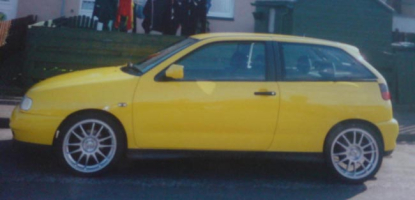

Ibiza 6K (1993-2002)
Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes
  • Rear Beam Mounting Bush PFR85-615 is for model years 1993 to 1999, it measures 57.75mm diameter
  • Rear Beam Mounting Bush  PFR85-915 is for model years 1997 to 2002, it measures 72.5mm diameter
  • For power steering mount bushes please measure the width of bracket and select the correct part number.
  • PFF85-232 is suitable for vehicles with a 18.5mm wide bracket.
  • PFF85-233 is suitable for vehicles with a 15mm wide bracket.

    • Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

    In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.

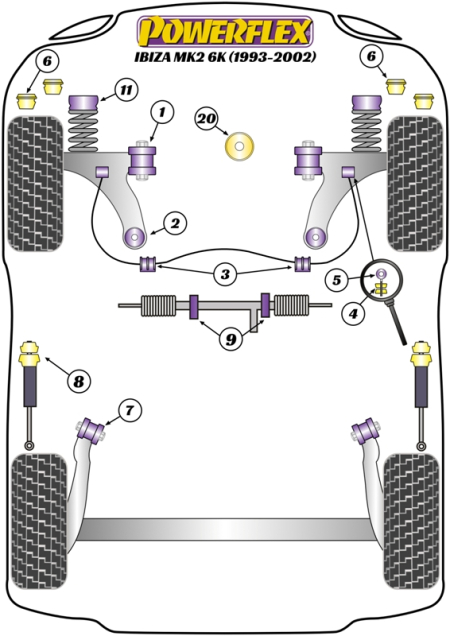

    Bush description Quantity
    Per Car    		 Diagram
    Reference    		 Part
    Number    		 Retail Price
    Each
    Front Wishbone Front Bush Front Wishbone Front Bush 2 1 PFF85-201
    Ex. VAT:   £19.31
    Inc. VAT:   £23.17
    Front Wishbone Rear Bush Front Wishbone Rear Bush 2 2 PFF85-204
    Ex. VAT:   £18.95
    Inc. VAT:   £22.74
    Front Anti Roll Bar Bush 18mm Front Anti Roll Bar Bush 18mm 2 3 PFF85-205
    Ex. VAT:   £14.96
    Inc. VAT:   £17.95
    Front Anti Roll Bar Bush 20mm Front Anti Roll Bar Bush 20mm 2 3 PFF85-205-20
    Ex. VAT:   £14.96
    Inc. VAT:   £17.95
    Front Eye Bolt Mounting Bush Front Eye Bolt Mounting Bush 2 4 PFF85-208
    Ex. VAT:   £13.60
    Inc. VAT:   £16.32
    Front Eye Bolt Mounting Bush 10mm Front Eye Bolt Mounting Bush 10mm 2 4 PFF85-208-10
    Ex. VAT:   £13.60
    Inc. VAT:   £16.32
    Front Anti Roll Bar Eye Bolt Bush 18mm Front Anti Roll Bar Eye Bolt Bush 18mm 2 5 PFF85-209
    Ex. VAT:   £14.25
    Inc. VAT:   £17.10
    Front Anti Roll Bar Eye Bolt Bush 20mm Front Anti Roll Bar Eye Bolt Bush 20mm 2 5 PFF85-209-20
    Ex. VAT:   £14.25
    Inc. VAT:   £17.10
    Front Subframe Mounts Front Subframe Mounts 4 6 PFF85-250
    Ex. VAT:   £7.36
    Inc. VAT:   £8.83
    Rear Beam Mounting Bush Rear Beam Mounting Bush 2 7 PFR85-615
    Ex. VAT:   £27.67
    Inc. VAT:   £33.20
    Rear Beam Mounting Bush Rear Beam Mounting Bush 2 7 PFR85-915
    Ex. VAT:   £27.67
    Inc. VAT:   £33.20
    Rear Shock Top Mounting Bush Rear Shock Top Mounting Bush 2 8 PFR85-240
    Ex. VAT:   £13.95
    Inc. VAT:   £16.74
    Power Steering Rack Mount Power Steering Rack Mount 1 9 PFF85-232
    Ex. VAT:   £11.50
    Inc. VAT:   £13.80
    Power Steering Rack Mount Power Steering Rack Mount 1 9 PFF85-233
    Ex. VAT:   £11.50
    Inc. VAT:   £13.80
    Non Power Steering Rack Mount Non Power Steering Rack Mount 2 9 PFF85-231
    Ex. VAT:   £11.50
    Inc. VAT:   £13.80
