Subaru - Impreza Turbo, WRX & Sti (GC,GF 93 - 00)

Impreza Turbo, WRX & Sti (GC,GF 93 - 00)

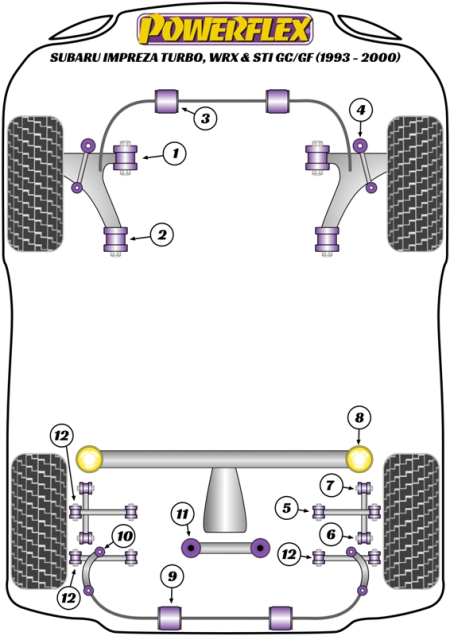

Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes
  • Front wishbones can be steel or alloy. Our bushes will fit both
  • The front of the two rear tie bars on each side has a smaller sleeve bush on the inner end next to the diff. For one rear tie bar car kit order 6 x PFR69-110 & 2 x PFR69-111
  • PFF69-107 will only fit Impreza's with pressed steel lower arms
  • PFR69-122's are for rear diffs that mount directly to the subframe
  • PFF69-102G is Geometry Adjustable and allows +/-0.33 degrees of Caster adjustment
  • PFR69-123 Fits early JDM RA & UK WRX models using a seperate diff mounting bracket, use PFR69-122 where diff mounts directly to subframe.

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Wishbone Front Bush Front Wishbone Front Bush 2 1 PFF69-101
Ex. VAT:   £17.27
Inc. VAT:   £20.72
Front Wishbone Rear Bush Front Wishbone Rear Bush 2 2 PFF69-102
Ex. VAT:   £29.37
Inc. VAT:   £35.24
Front Arm Rear Bush - Caster Adjust Front Arm Rear Bush - Caster Adjust
Fitting instructions Click for fitting instructions 		2 2 PFF69-102G
Ex. VAT:   £36.70
Inc. VAT:   £44.04
Front Anti Roll Bar To Chassis Bush 17mm Front Anti Roll Bar To Chassis Bush 17mm 2 3 PF69-303-17
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar To Chassis Bush 18mm Front Anti Roll Bar To Chassis Bush 18mm 2 3 PF69-303-18
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar To Chassis Bush 19mm Front Anti Roll Bar To Chassis Bush 19mm 2 3 PF69-303-19
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar To Chassis Bush 20mm Front Anti Roll Bar To Chassis Bush 20mm 2 3 PF69-303-20
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar To Chassis Bush 21mm 2 3 PF69-303-21
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar End Link Front Anti Roll Bar End Link 2 4 PFF69-107
Ex. VAT:   £21.89
Inc. VAT:   £26.27
Rear Tie Bar Bush Rear Tie Bar Bush 2 5 PFR69-111
Ex. VAT:   £14.14
Inc. VAT:   £16.97
Rear Tie Bar To Hub Rear Bush Rear Tie Bar To Hub Rear Bush 2 6 PFR69-115
Ex. VAT:   £16.12
Inc. VAT:   £19.34
Rear Tie Bar To Hub Front Bush Rear Tie Bar To Hub Front Bush 2 7 PFR69-117
Ex. VAT:   £17.27
Inc. VAT:   £20.72
Rear Beam Mount Rear Beam Mount 2 8 PFR69-118
Ex. VAT:   £22.10
Inc. VAT:   £26.52
Rear Anti Roll Bar To Chassis Bush 15mm Rear Anti Roll Bar To Chassis Bush 15mm 2 9 PF69-303-15
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar To Chassis Bush 17mm Rear Anti Roll Bar To Chassis Bush 17mm 2 9 PF69-303-17
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar To Chassis Bush 18mm Rear Anti Roll Bar To Chassis Bush 18mm 2 9 PF69-303-18
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar To Chassis Bush 19mm Rear Anti Roll Bar To Chassis Bush 19mm 2 9 PF69-303-19
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar To Chassis Bush 20mm Rear Anti Roll Bar To Chassis Bush 20mm 2 9 PF69-303-20
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Roll Bar Link Bush Rear Roll Bar Link Bush 4 10 PFR69-119
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Rear Diff Mount Rear Diff Mount 2 11 PFR69-122
Ex. VAT:   £22.10
Inc. VAT:   £26.52
Rear Diff Mount, Early RA & UK WRX Models Rear Diff Mount, Early RA & UK WRX Models 2 11 PFR69-123
Ex. VAT:   £23.05
Inc. VAT:   £27.66
Rear Tie Bar Bush Rear Tie Bar Bush 6 12 PFR69-110
Ex. VAT:   £14.14
Inc. VAT:   £16.97
Exhaust Mounts Exhaust Mounts 1 EXH009
Ex. VAT:   £5.86
Inc. VAT:   £7.03
