18/05/2013

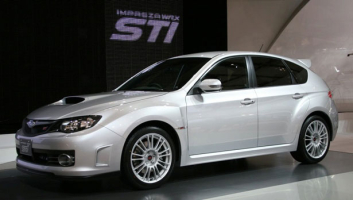

Subaru - Impreza including WRX & STi, (GH 10/07-12/10, GR 02/08-12/10)

Impreza including WRX & STi, (GH 10/07-12/10, GR 02/08-12/10)

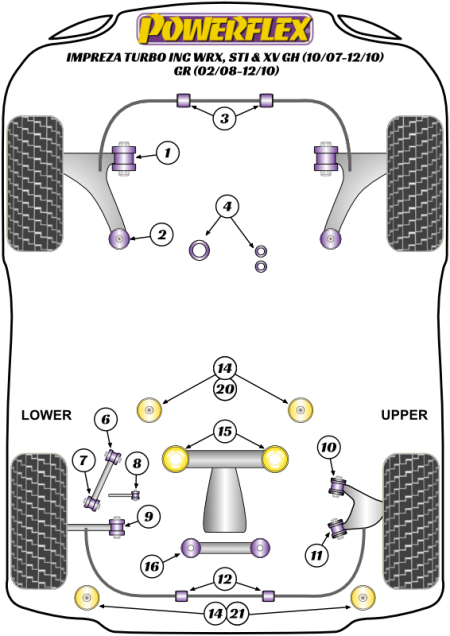

Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Arm Front Bush Front Arm Front Bush 2 1 PFF69-501
Ex. VAT:   £20.95
Inc. VAT:   £25.14
Anti Lift, Caster ADJUSTABLE Front Arm Rear Bush Anti Lift, Caster ADJUSTABLE Front Arm Rear Bush
Fitting instructions Click for fitting instructions 		2 2 PFF69-502G
Ex. VAT:   £68.20
Inc. VAT:   £81.84
Front Anti Roll Bar Bush 18mm Front Anti Roll Bar Bush 18mm 2 3 PFF69-503-18
Ex. VAT:   £16.12
Inc. VAT:   £19.34
Front Anti Roll Bar Bush 20mm Front Anti Roll Bar Bush 20mm 2 3 PFF69-503-20
Ex. VAT:   £16.12
Inc. VAT:   £19.34
Front Anti Roll Bar Bush 21mm Front Anti Roll Bar Bush 21mm 2 3 PFF69-503-21
Ex. VAT:   £16.12
Inc. VAT:   £19.34
Steering Rack Mounting Kit Steering Rack Mounting Kit 1 4 PFF69-504
Ex. VAT:   £31.45
Inc. VAT:   £37.74
Rear Trailing Arm Front Bush Rear Trailing Arm Front Bush
Fitting instructions Click for fitting instructions 		2 6 PFR69-506
Ex. VAT:   £22.73
Inc. VAT:   £27.28
Rear Trailing Arm Rear Bush Rear Trailing Arm Rear Bush
Fitting instructions Click for fitting instructions 		2 7 PFR69-507
Ex. VAT:   £20.95
Inc. VAT:   £25.14
Rear Toe Adjuster Inner Bush Rear Toe Adjuster Inner Bush 2 8 PFR69-508
Ex. VAT:   £24.10
Inc. VAT:   £28.92
Rear Lower Track Control Inner Bush Rear Lower Track Control Inner Bush 2 9 PFR69-509
Ex. VAT:   £20.63
Inc. VAT:   £24.76
Rear Upper Arm Inner Front Bush Rear Upper Arm Inner Front Bush
Fitting instructions Click for fitting instructions 		2 10 PFR69-510
Ex. VAT:   £20.95
Inc. VAT:   £25.14
Rear Upper Arm Inner Front Bush ADJUSTABLE Rear Upper Arm Inner Front Bush ADJUSTABLE
Fitting instructions Click for fitting instructions 		2 10 PFR69-510G
Ex. VAT:   £35.65
Inc. VAT:   £42.78
Rear Upper Arm Inner Rear Bush Rear Upper Arm Inner Rear Bush
Fitting instructions Click for fitting instructions 		2 11 PFR69-511
Ex. VAT:   £21.26
Inc. VAT:   £25.51
Rear Upper Arm Inner Rear Bush ADJUSTABLE Rear Upper Arm Inner Rear Bush ADJUSTABLE
Fitting instructions Click for fitting instructions 		2 11 PFR69-511G
Ex. VAT:   £35.65
Inc. VAT:   £42.78
Rear Anti Roll Bar Bush 16mm Rear Anti Roll Bar Bush 16mm 2 12 PFR69-512-16
Ex. VAT:   £16.12
Inc. VAT:   £19.34
Rear Anti Roll Bar Bush 18mm Rear Anti Roll Bar Bush 18mm 2 12 PFR69-512-18
Ex. VAT:   £16.12
Inc. VAT:   £19.34
Rear Anti Roll Bar Bush 20mm Rear Anti Roll Bar Bush 20mm 2 12 PFR69-512-20
Ex. VAT:   £16.12
Inc. VAT:   £19.34
Rear Subframe Insert Rear Subframe Insert
Fitting instructions Click for fitting instructions 		4 14 PFR69-514
Ex. VAT:   £13.60
Inc. VAT:   £16.32
Rear Diff Front Mounting Bush Rear Diff Front Mounting Bush 2 15 PFR69-515
Ex. VAT:   £20.95
Inc. VAT:   £25.14
Rear Diff Rear Mounting Bush Rear Diff Rear Mounting Bush
Fitting instructions Click for fitting instructions 		2 16 PFR69-516
Ex. VAT:   £41.58
Inc. VAT:   £49.90
