Mitsubishi - Lancer Evolution 8-9 (inc 260)

Lancer Evolution 8-9 (inc 260)

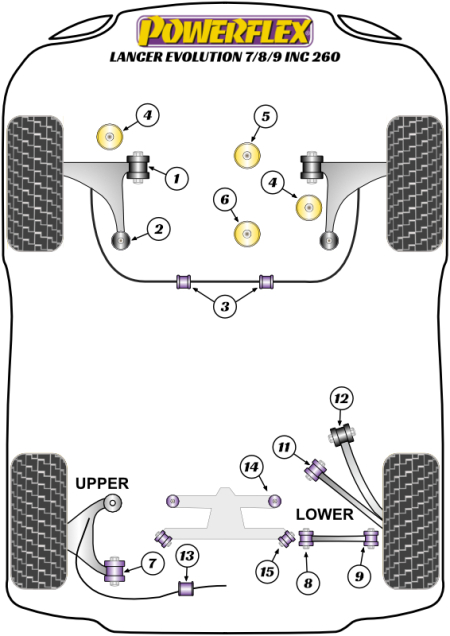

Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes


  • The Front Lower Diff Mount has 2 possible sizes 62mm use PFF44-107 and 70.5mm use PFF44-108
  • `R` on the end of the part numbers for the mounts are for road use, for competition use the standard, non R, part number.
  • PFF44-105(R) is used twice on the vehicle. It is used for the Upper Engine Mount as well as the Upper Gearbox Mount

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Wishbone Front Bush Front Wishbone Front Bush 2 1 PFF44-1011-14
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Front Anti Roll Bar Bush 24mm Front Anti Roll Bar Bush 24mm 2 3 PFF44-201-24
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Bush 26mm Front Anti Roll Bar Bush 26mm 2 3 PFF44-201-26
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Bush 29mm Front Anti Roll Bar Bush 29mm 2 3 PFF44-201-29
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Upper Engine Mount Front Upper Engine Mount 2 4 PFF44-105
Ex. VAT:   £33.44
Inc. VAT:   £40.13
Front Upper Engine Mount (Road Use) Front Upper Engine Mount (Road Use) 2 4 PFF44-105R
Ex. VAT:   £33.44
Inc. VAT:   £40.13
Front Lower Front Engine Mount Front Lower Front Engine Mount 1 5 PFF44-106
Ex. VAT:   £28.82
Inc. VAT:   £34.58
Front Lower Front Engine Mount (Road Use) Front Lower Front Engine Mount (Road Use) 1 5 PFF44-106R
Ex. VAT:   £28.82
Inc. VAT:   £34.58
Front Lower Diff Mount Front Lower Diff Mount 1 6 PFF44-107
Ex. VAT:   £26.51
Inc. VAT:   £31.81
Front Lower Diff Mount (Road Use) Front Lower Diff Mount (Road Use) 1 6 PFF44-107R
Ex. VAT:   £26.51
Inc. VAT:   £31.81
Front Lower Diff Mount Front Lower Diff Mount 1 6 PFF44-108
Ex. VAT:   £26.51
Inc. VAT:   £31.81
Front Lower Diff Mount (Road Use) Front Lower Diff Mount (Road Use) 1 6 PFF44-108R
Ex. VAT:   £26.51
Inc. VAT:   £31.81
Rear Upper Arm Rear Bush Rear Upper Arm Rear Bush 2 7 PFR44-109
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Lower Track Arm Inner Bush Rear Lower Track Arm Inner Bush 2 8 PFR44-111
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Rear Lower Track Control Arm Outer Bush Rear Lower Track Control Arm Outer Bush 2 9 PFR44-112
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Toe Arm Control Arm Bush Rear Toe Arm Control Arm Bush 2 11 PFR44-115
Ex. VAT:   £17.27
Inc. VAT:   £20.72
Rear Tie Bar Front Bush Rear Tie Bar Front Bush 2 12 PFR44-117
Ex. VAT:   £21.89
Inc. VAT:   £26.27
Rear Anti Roll Bar Bush 22mm Rear Anti Roll Bar Bush 22mm 2 13 PFR44-210-22
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar Bush 24mm Rear Anti Roll Bar Bush 24mm 2 13 PFR44-210-24
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar Bush 27mm Rear Anti Roll Bar Bush 27mm 2 13 PFR44-210-27
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Diff Mount Front Bush Rear Diff Mount Front Bush 2 14 PFR44-120
Ex. VAT:   £21.89
Inc. VAT:   £26.27
Rear Diff Mount Rear Bush Rear Diff Mount Rear Bush 2 15 PFR44-121
Ex. VAT:   £20.74
Inc. VAT:   £24.89
