Seat - Leon & Cupra R Mk1 Typ 1M (1999-2005)

Leon & Cupra R Mk1 Typ 1M (1999-2005)

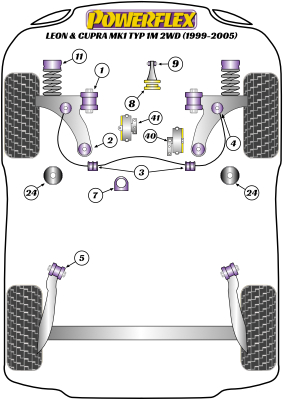

Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes




  • For pressed steel front wishbones use PFF85-201 & PFF85-410
  • For cast wishbones use PFF85-201 or PFF3-501 & PFF3-610. On cast wishbones the later cars have a larger 45mm bush, in this case please use PFF3-501. For earlier cars with a 30mm bush please use PFF85-201.
  • PFF85-414 Is for Race use and is a rose joint type bush, it fits both pressed steel and cast wishbones

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Wishbone Front Bush, Cast Arm, 45mm OD Front Wishbone Front Bush, Cast Arm, 45mm OD 2 1 PFF3-501
Ex. VAT:   £20.33
Inc. VAT:   £24.40
Front Wishbone Front Bush, Pressed Arm, 30mm OD Front Wishbone Front Bush, Pressed Arm, 30mm OD 2 1 PFF85-201
Ex. VAT:   £19.31
Inc. VAT:   £23.17
Front Wishbone Rear Bush, Cast Arm Front Wishbone Rear Bush, Cast Arm 2 2 PFF3-610
Ex. VAT:   £21.73
Inc. VAT:   £26.08
Front Wishbone Rear Bush, Pressed Arm Front Wishbone Rear Bush, Pressed Arm 2 2 PFF85-410
Ex. VAT:   £21.73
Inc. VAT:   £26.08
Front Wishbone Rear Bush (Race Use) Front Wishbone Rear Bush (Race Use) 2 2 PFF85-414
Ex. VAT:   £63.53
Inc. VAT:   £76.24
Front Anti Roll Bar Mount 18mm Front Anti Roll Bar Mount 18mm 2 3 PFF85-411-18
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Mount 21mm Front Anti Roll Bar Mount 21mm 2 3 PFF85-411-21
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Mount 23mm Front Anti Roll Bar Mount 23mm 2 3 PFF85-411-23
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Link Bush Kit Front Anti Roll Bar Link Bush Kit 2 4 PFF85-412
Ex. VAT:   £18.60
Inc. VAT:   £22.32
Rear Beam Mounting Bush Rear Beam Mounting Bush 2 5 PFR85-415
Ex. VAT:   £28.99
Inc. VAT:   £34.79
Steering Rack Mount Bush Steering Rack Mount Bush 1 7 PFF85-416
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Front Engine Mount Dog Bone Front Engine Mount Dog Bone 1 8 PFF85-420
Ex. VAT:   £19.31
Inc. VAT:   £23.17
Front Engine Mount Dog Bone (Diesel) Front Engine Mount Dog Bone (Diesel) 1 8 PFF85-420R
Ex. VAT:   £21.75
Inc. VAT:   £26.10
Front Engine Mount Dog Bone Small Bush Front Engine Mount Dog Bone Small Bush
Fitting instructions Click for fitting instructions 		1 9 PFF85-505
Ex. VAT:   £19.75
Inc. VAT:   £23.70
Front Strut Top Mount Bush Front Strut Top Mount Bush 2 11 PFF85-430
Ex. VAT:   £19.95
Inc. VAT:   £23.94
Bump Stop Kit Bump Stop Kit
Fitting instructions Click for fitting instructions 		1 BS2006K
Ex. VAT:   £24.95
Inc. VAT:   £29.94
