24/05/2013

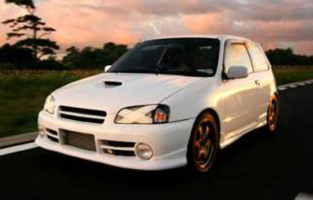

Toyota - Starlet/Glanza Turbo EP82 & EP91
Notes
- PFF76-401 only fits models where the front arm front bush measures 34mm diameter.
- PFF76-423 rear gear box mount fits models where the original bush measures 74mm diameter, for bushes that measure 64mm use PFF76-421.
- PFR76-409 fits later Starlet Glanza models with a bush diameter of 48.5mm, it fits into the original outer shell.
- PFR76-410 fits Starlet models where the bush measures 55mm diameter and fits into the original outer shell.
Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column
In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.
| Bush description | Quantity Per Car |

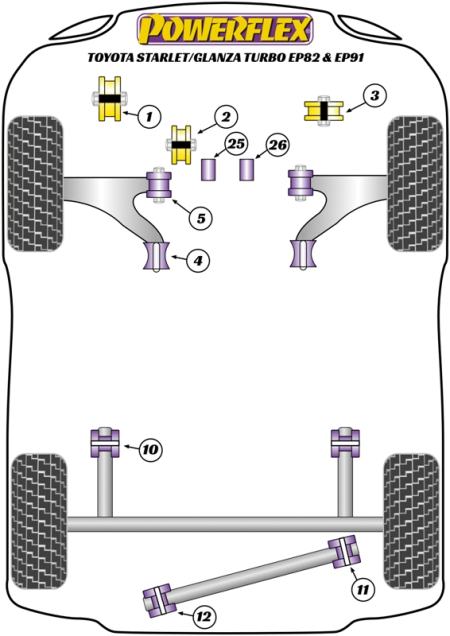

Diagram Reference |
Part Number |
Retail Price Each |
|||||
|---|---|---|---|---|---|---|---|---|---|
 |
Front Gearbox Mount Bush | 1 | 1 | PFF76-420 |
|
||||
 |
Rear Gearbox Mount Bush | 1 | 2 | PFF76-421 |
|
||||
 |
Rear Gearbox Mount Bush, LSD Models  Click for fitting instructions
|
1 | 2 | PFF76-423 |
|
||||
 |
Front Engine Mount | 1 | 3 | PFF76-422 |
|
||||
 |
Front Wishbone Rear Anti Lift Kit Click for fitting instructions
|
1 | 4 | PFF76-402K |
|
||||
 |
Front Arm Front Bush | 2 | 5 | PFF76-401 |
|
||||
 |
Rear Beam Mounting Bush Click for fitting instructions
|
2 | 10 | PFR76-409 |
|
||||
 |
Rear Beam Mounting Bush Click for fitting instructions
|
2 | 10 | PFR76-410 |
|
||||
 |
Rear Panhard Rod To Beam Bush | 1 | 11 | PFR76-411 |
|
||||
 |
Rear Panhard Rod To Body Bush | 1 | 12 | PFR76-412 |
|
