Audi - TT Mk1 Typ 8N 4WD (1999-2006)
Notes
- On the front wishbones the later cars have a larger 45mm bush, in this case please use PFF3-501. For earlier cars with a 30mm bush please use PFF85-201.
- PFF85-414 Is for Race use and is a rose joint type bush
Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column
In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.

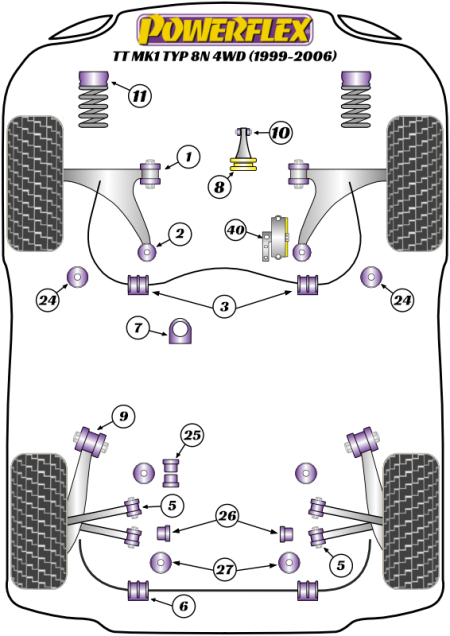

| Bush description | Quantity Per Car |
Diagram Reference |
Part Number |
Retail Price Each |
|||||
|---|---|---|---|---|---|---|---|---|---|
 |
Front Wishbone Front Bush | 2 | 1 | PFF3-501 |
|
||||
 |
Front Wishbone Front Bush | 2 | 1 | PFF85-201 |
|
||||
 |
Front Wishbone Rear Bush | 2 | 2 | PFF3-610 |
|
||||
 |
Front Wishbone Rear Bush (Race Use) | 2 | 2 | PFF85-414 |
|
||||
 |
Front Anti Roll Bar Mounting 17mm | 2 | 3 | PFF3-503-17 |
|
||||
 |
Front Anti Roll Bar Mounting 19mm | 2 | 3 | PFF3-503-19 |
|
||||
 |
Front Anti Roll Bar Mounting 20mm | 2 | 3 | PFF3-503-20 |
|
||||
 |
Rear Wishbone Front Mounting Bush | 2 | 4 | PFR3-508 |
|
||||
 |
Rear Wishbone Inner Bush | 4 | 5 | PFR3-510 |
|
||||
 |
Rear Anti Roll Bar Mounting 14mm | 2 | 6 | PFR3-511-14 |
|
||||
web.jpg&h=35) |
Steering Rack Mount Bush | 1 | 7 | PFF85-416 |
|
||||
 |
Front Engine Mount Dog Bone | 1 | 8 | PFF85-420 |
|
||||
 |
Front Engine Mount Dog Bone (Diesel) | 1 | 8 | PFF85-420R |
|
||||
 |
Front Engine Mount Dog Bone Small Bush  Click for fitting instructions
|
1 | 9 | PFF85-505 |
|
||||
 |
Front Strut Top Mount Bush | 2 | 11 | PFF85-430 |
|
