18/05/2013
Audi - V8 Type 44 & 4C (10/88-11/93)
Notes:
- Check roll bar mounting bush design and size
Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column
In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.
| Bush description | Quantity Per Car |

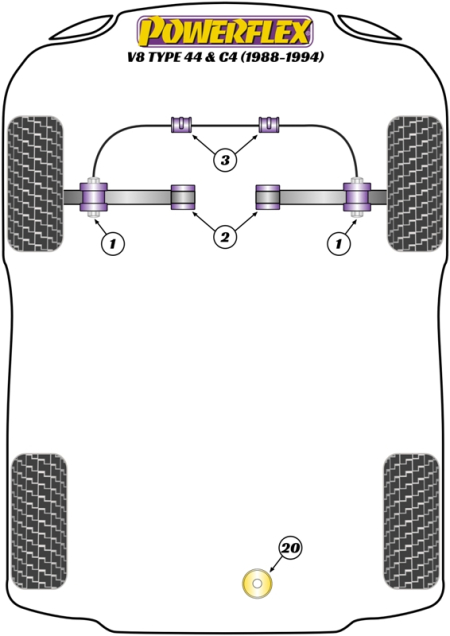

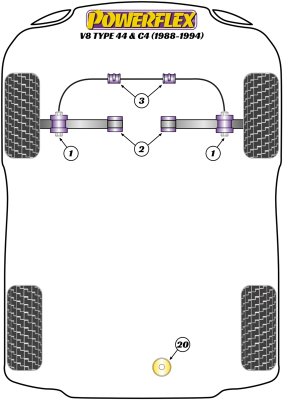

Diagram Reference |
Part Number |
Retail Price Each |
|||||
|---|---|---|---|---|---|---|---|---|---|
 |
Front Outer Control Arm To Anti Roll Bar Bush | 2 | 1 | PFF3-401 |
|
||||
 |
Front Inner Control Arm To Chassis Bush | 2 | 2 | PFF3-402 |
|
||||
 |
Front Anti Roll Bar To Chassis 25mm | 2 | 3 | PFF3-403-25 |
|
||||
 |
Front Anti Roll Bar To Chassis 28mm | 2 | 3 | PFF3-403-28 |
|
||||
 |
Steering Arm To Rack Bush | 2 | PFF3-405 |
|
