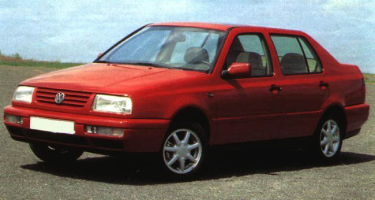

Volkswagen - Vento (1992 - 1998)

Vento (1992 - 1998)
Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes

  • VR6 & GT models with chassis codes AAA, AGG & AKR Do Not Use PFR85-208
  • For power steering mount bushes please measure the width of bracket and select the correct part number.
  • PFF85-232 is suitable for vehicles with a 18.5mm wide bracket.
  • PFF85-233 is suitable for vehicles with a 15mm wide bracket.

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.

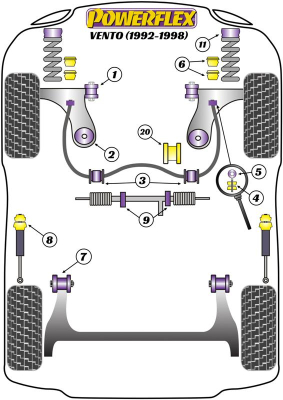

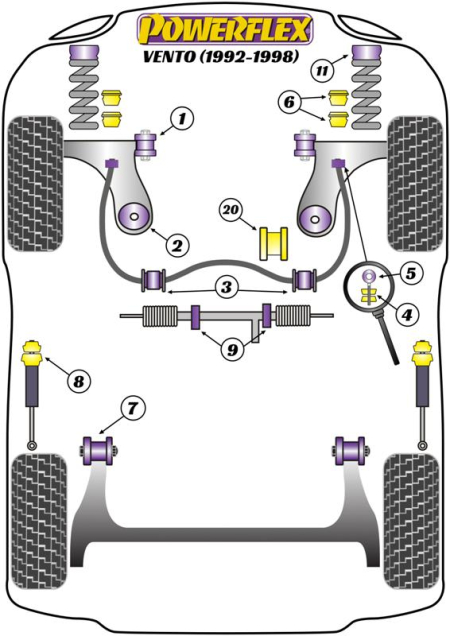

Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Wishbone Front Bush Front Wishbone Front Bush 2 1 PFF85-201
Ex. VAT:   £19.31
Inc. VAT:   £23.17
Front Wishbone Inner Bush (rear) Front Wishbone Inner Bush (rear) 2 2 PFF85-204
Ex. VAT:   £18.95
Inc. VAT:   £22.74
Front Anti Roll Bar Mount 18mm Front Anti Roll Bar Mount 18mm 2 3 PFF85-205
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Bush 20mm Front Anti Roll Bar Bush 20mm 2 3 PFF85-205-20
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Eye Bolt Mounting Bush Front Eye Bolt Mounting Bush 2 4 PFF85-208
Ex. VAT:   £13.60
Inc. VAT:   £16.32
Front Eye Bolt Mounting Bush 10mm Front Eye Bolt Mounting Bush 10mm 2 4 PFF85-208-10
Ex. VAT:   £13.60
Inc. VAT:   £16.32
Front Anti Roll Bar Eye Bolt Bush 18mm Front Anti Roll Bar Eye Bolt Bush 18mm 2 5 PFF85-209
Ex. VAT:   £14.25
Inc. VAT:   £17.10
Front Anti Roll Bar Eye Bolt Bush 20mm Front Anti Roll Bar Eye Bolt Bush 20mm 2 5 PFF85-209-20
Ex. VAT:   £14.25
Inc. VAT:   £17.10
Front Subframe Mounts Front Subframe Mounts 4 6 PFF85-250
Ex. VAT:   £7.36
Inc. VAT:   £8.83
Rear Beam Mounting Bush Rear Beam Mounting Bush 2 7 PFR85-206
Ex. VAT:   £28.99
Inc. VAT:   £34.79
Rear Shock Top Mounting Bush Rear Shock Top Mounting Bush 2 8 PFR85-240
Ex. VAT:   £13.95
Inc. VAT:   £16.74
Non Power Steering Rack Mount Non Power Steering Rack Mount 2 9 PFF85-231
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Power Steering Rack Mount Power Steering Rack Mount 1 9 PFF85-232
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Power Steering Rack Mount Power Steering Rack Mount 1 9 PFF85-233
Ex. VAT:   £11.50
Inc. VAT:   £13.80
Bump Stop Front Bump Stop Front 2 BS006
Ex. VAT:   £12.08
Inc. VAT:   £14.50
Exhaust Mounts Exhaust Mounts 1 EXH006
Ex. VAT:   £5.86
Inc. VAT:   £7.03
Bump Stop Rear Bump Stop Rear 2 BS008
Ex. VAT:   £12.08
Inc. VAT:   £14.50
Bump Stop Kit Bump Stop Kit
Fitting instructions Click for fitting instructions 		1 BS2005K
Ex. VAT:   £20.95
Inc. VAT:   £25.14
