BMW - Z1 (1988 - 1991)
Notes
- PFF5-303 is an eccentric bush for the M3. This can be fitted to all models through out the range giving them increased castor.
- PFF5-304 is designed to fit models where the Anti Roll Bar joins lower arm not the shock absorber.
Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column
In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.
| Bush description | Quantity Per Car |

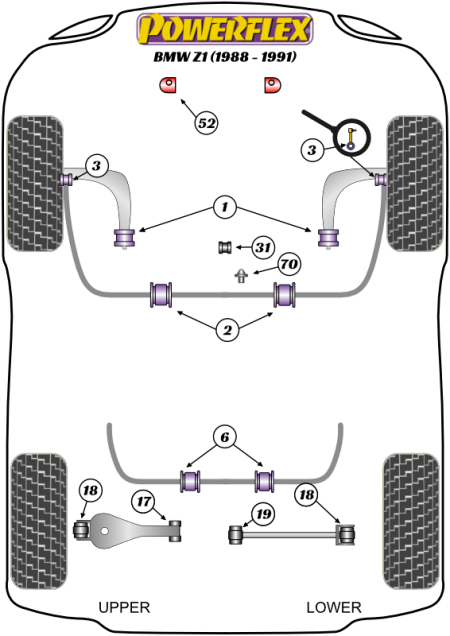

Diagram Reference |
Part Number |
Retail Price Each |
|||||
|---|---|---|---|---|---|---|---|---|---|
 |
Front Lower Wishbone Rear Bush  Click for fitting instructions
|
2 | 1 | PFF5-301 |
|
||||
 |
Front Lower Wishbone Rear Bush Eccentric Click for fitting instructions
|
2 | 1 | PFF5-303 |
|
||||
 |
Front Anti Roll Bar Bush 21mm | 2 | 2 | PFF5-302-21 |
|
||||
 |
Anti Roll Bar Link Rod Bush | 2 | 3 | PFF5-304 |
|
||||
 |
Rear Roll Bar Mounting Bush 14mm | 2 | 6 | PFR5-308-14 |
|
