Lancia - Integrale 16v

Integrale 16v

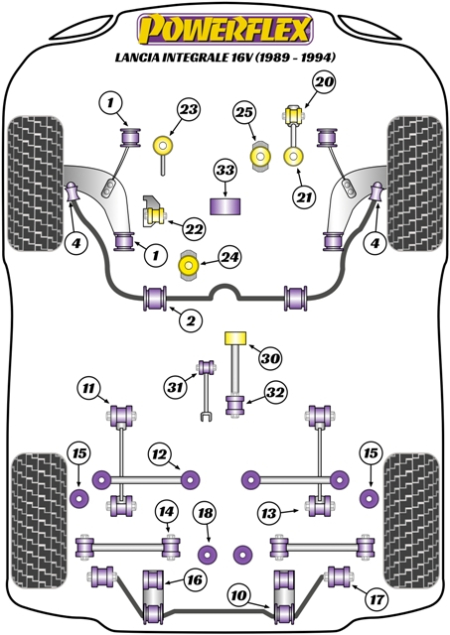

Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes

  • The Integrale EVO 2 uses PFF30-301 with a 14mm bore bush
  • All other Integrale use PFF30-302 with 12mm bore bush

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Wishbone Bush Front Wishbone Bush 4 1 PFF30-301
Ex. VAT:   £22.41
Inc. VAT:   £26.89
Front Wishbone Bush Front Wishbone Bush 4 1 PFF30-302
Ex. VAT:   £22.41
Inc. VAT:   £26.89
Rear Tie Bar Front Bush Rear Tie Bar Front Bush 2 3 PFR30-307
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Tie Bar Rear Bush Rear Tie Bar Rear Bush 2 4 PFR30-308
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Anti Roll Bar Bush 15mm Rear Anti Roll Bar Bush 15mm 2 5 PFR30-310-15
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Lateral Arm Inner & Outer Bush Rear Lateral Arm Inner & Outer Bush 4 15, 16 PFR30-309
Ex. VAT:   £21.15
Inc. VAT:   £25.38
