Nissan - 200SX - S13 & S14
 |
Notes The Front Inner Track Control Arm Bush Is available in 2 different diameters PFF46-201 is 35mm and PFF46-221 at 31.6mm. PFR46-203 - S13 only, PFR46-210 - S14 only PFR46-204G - Order 8 off PFR46-204G, 2 off PFR46-204 and 2 off PFR46-205 to replace all the rear upper arm bushes allowing camber adjustment of +/-1.5 deg. |
 |
Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column
| Bush description | Quantity Per Car |

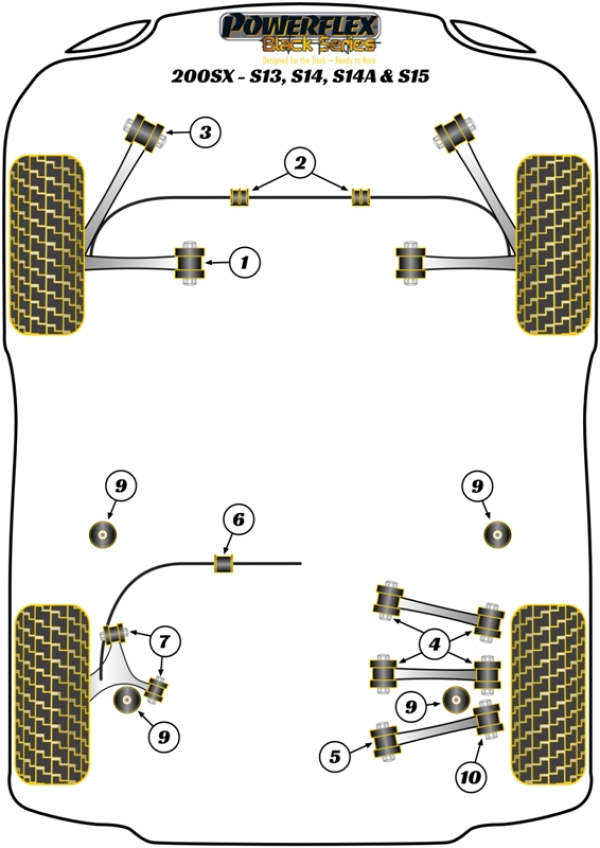

Diagram Reference |
Part Number |
Retail Price Each |
||||
|---|---|---|---|---|---|---|---|---|
| Front Inner Track Control Arm Bush | 2 | 1 | PFF46-201 |
|
||||
| Front Inner Track Control Arm Bush | 2 | 1 | PFF46-221 |
|
||||
| Front Anti Roll Bar Mount 25mm | 2 | 2 | PFF46-202-25 |
|
||||
| Front Antil Roll Bar Mount 27mm | 2 | 2 | PFF46-202-27 |
|
||||
| Front Lower Radius Arm To Chassis | 2 | 3 | PFF46-218 |
|
||||
| Rear Link Bushes | 10 | 4 | PFR46-204 |
|
||||
Rear Upper Arm Bush - Camber Adjust  Click for fitting instructions
|
8 | 4 | PFR46-204G |
|
||||
| Rear Toe Link Inner Bush | 2 | 5 | PFR46-205 |
|
||||
| Rear Anti Roll Bar Bush 15mm | 2 | 6 | PFR46-206-15 |
|
||||
| Rear Anti Roll Bar Bush 18mm | 2 | 6 | PFR46-206-18 |
|
||||
| Rear Trailing Arm Bushes | 4 | 7 | PFR46-203 |
|
||||
| Rear Trailing Arm Bushes | 4 | 7 | PFR46-210 |
|
||||
| Rear Anti Roll Bar Link Kit | 2 | 8 | PFR46-207 |
|
||||
| Rear Beam Mounting Bushes | 4 | 9 | PFR46-212 |
|
||||
| Rear Beam Bush Insert kit | 4 | 9 | PFR46-215 |
|
