Audi - 80 & 90 Avant (1973 - 1996)
 |
Notes PFF3-101 are for Steel arms PFF3-102 are for Alloy arms PFF3-104 & PFF3-105 These fit up to chassis number 8B-L-003-791 1994, check front shock absorber after 1991 the anti roll bar may be linked to the wishbone with a metal joint so there will be no outer anti roll bar mount. PFR3-110 fits up to 1992 chassis number 8A-N-200-000 PFR3-111 fits after 1992 . PFR3-1011-21 & -23.5 Front anti roll bar mounts are tear drop shaped. PFF3-106-21.5 Fits models where there is no link rod between the anti roll bar and control arm. |
 |
Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column
| Bush description | Quantity Per Car |

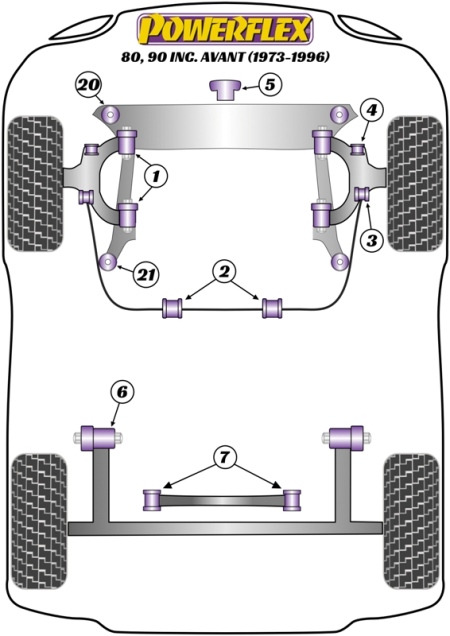

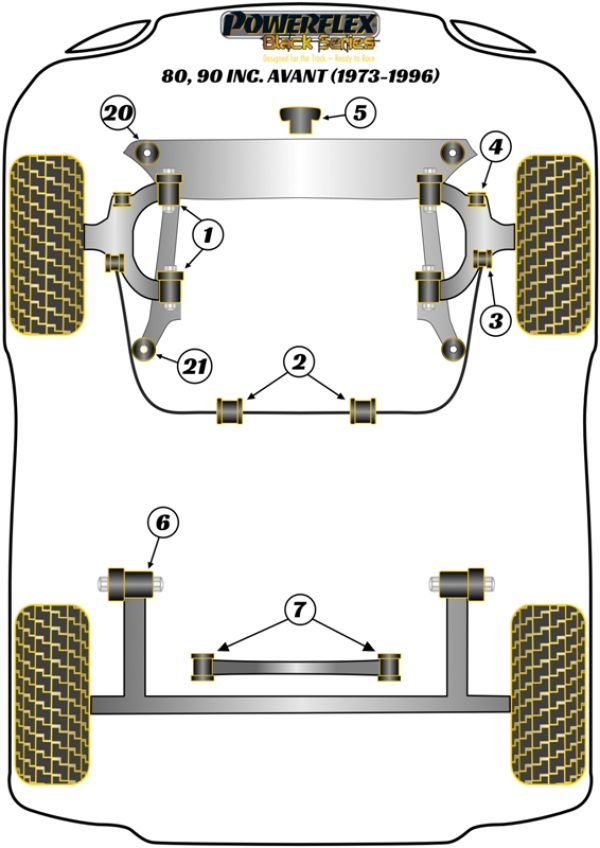

Diagram Reference |
Part Number |
Retail Price Each |
||||
|---|---|---|---|---|---|---|---|---|
| Front Wishbone Bush | 4 | 1 | PFF3-101 |
|
||||
| Front Wishbone Bush | 4 | 1 | PFF3-102 |
|
||||
| Front Anti Roll Bar Mount 24mm | 2 | 2 | PFF3-103-24 |
|
||||
| Front Anti Roll Bar Mount 25mm | 2 | 2 | PFF3-103-25 |
|
||||
| Front Anti Roll Bar Mount 21mm | 2 | 2 | PFR3-1011-21 |
|
||||
| Front Anti Roll Bar Mount 23.5mm | 2 | 2 | PFR3-1011-23.5 |
|
||||
| Front Outer Roll Bar Mount Lower 16mm | 2 | 3 | PFF3-105 |
|
||||
| Front Anti Roll Bar To Control Arm Bush | 2 | 3 | PFF3-106-21.5 |
|
||||
| Front Outer Roll Bar Mount Upper | 2 | 4 | PFF3-104 |
|
||||
| Rear Beam Front Location Bush | 2 | 6 | PFR3-110 |
|
||||
| Rear Beam Front Location Bush | 2 | 6 | PFR3-111 |
|
||||
| Rear Panhard Rod Bush | 2 | 7 | PFR3-109 |
|
