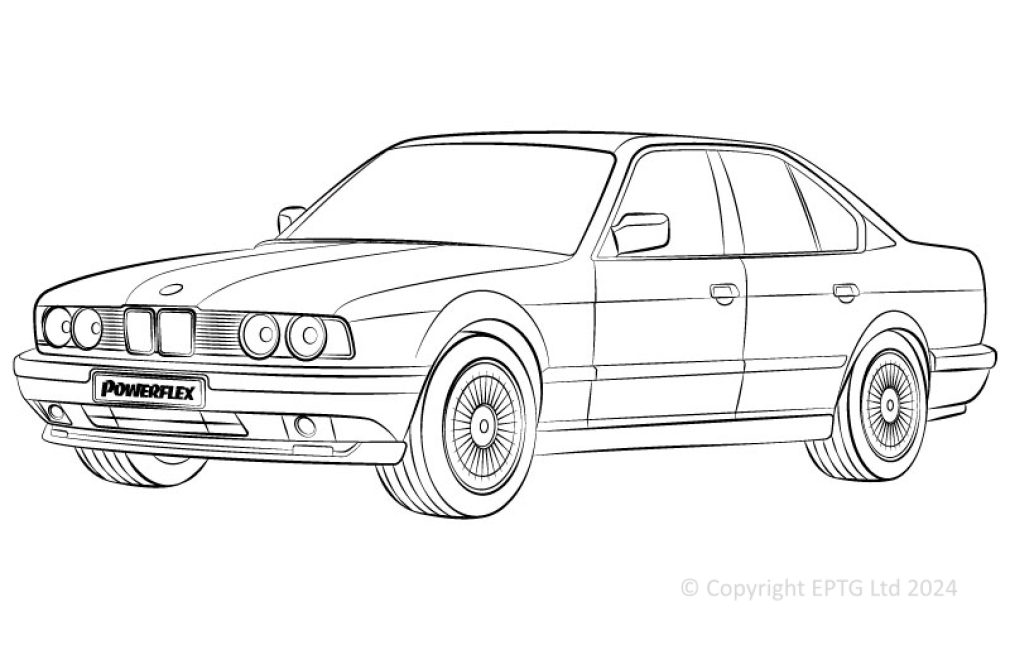

BMW - E34 5 Series (1988 - 1996)
 |
Notes PFF5-602 is fitted on models 520 to 530 with steel arms PFF5-620 is fitted on 535, 540 and M5 with alloy arms Check all anti roll bar sizes before ordering |
 |
Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column
| Bush description | Quantity Per Car |

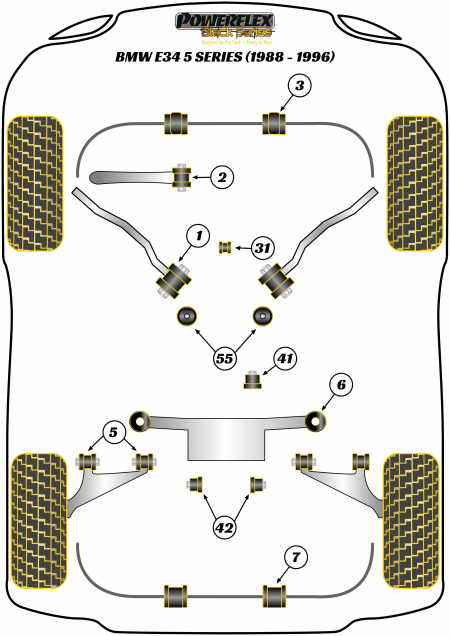

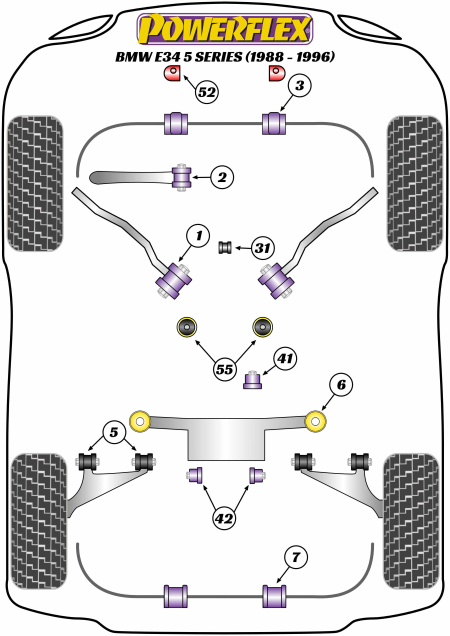

Diagram Reference |
Part Number |
Retail Price Each |
||||
|---|---|---|---|---|---|---|---|---|
| Front Lower Tie Bar To Chassis Bush | 2 | 1 | PFF5-601 |
|
||||
| Front Inner TCA Bush | 2 | 2 | PFF5-602 |
|
||||
| Front Inner TCA Bush | 2 | 2 | PFF5-620 |
|
||||
| Front Anti Roll Bar Mounting 23mm | 2 | 3 | PFF5-310-23 |
|
||||
| Front Anti Roll Bar Mounting 24mm | 2 | 3 | PFF5-310-24 |
|
||||
| Front Anti Roll Bar Mounting 25mm | 2 | 3 | PFF5-310-25 |
|
||||
| Rear Beam Mount Bush | 2 | 6 | PFR5-507 |
|
||||
| Rear Roll Bar Mounting Bush 15mm | 2 | 7 | PFR5-504-15 |
|
||||
| Rear Roll Bar Mounting Bush 16.5mm | 2 | 7 | PFR5-504-165 |
|
||||
| Rear Roll Bar Mounting Bush 18mm | 2 | 7 | PFR5-504-18 |
|
