Ford - Escort RS Turbo Series 2
 |

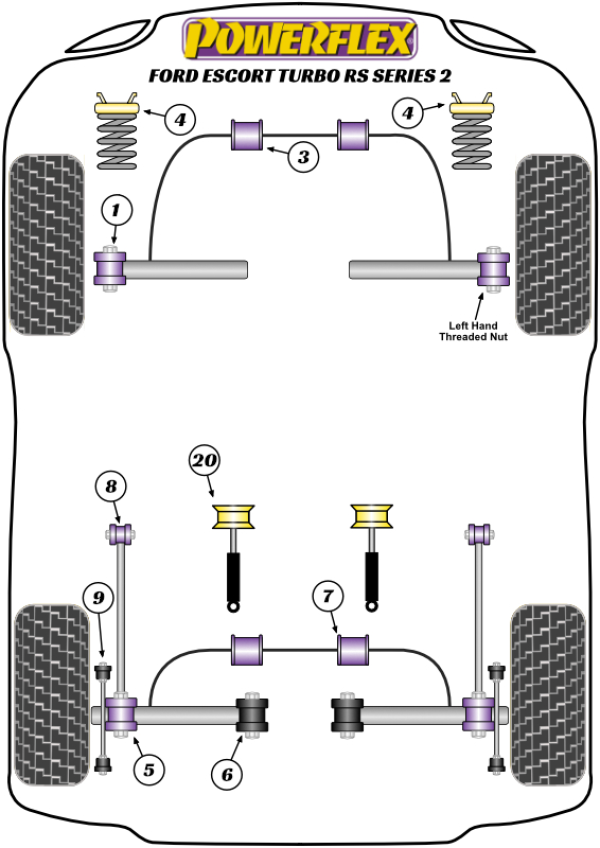

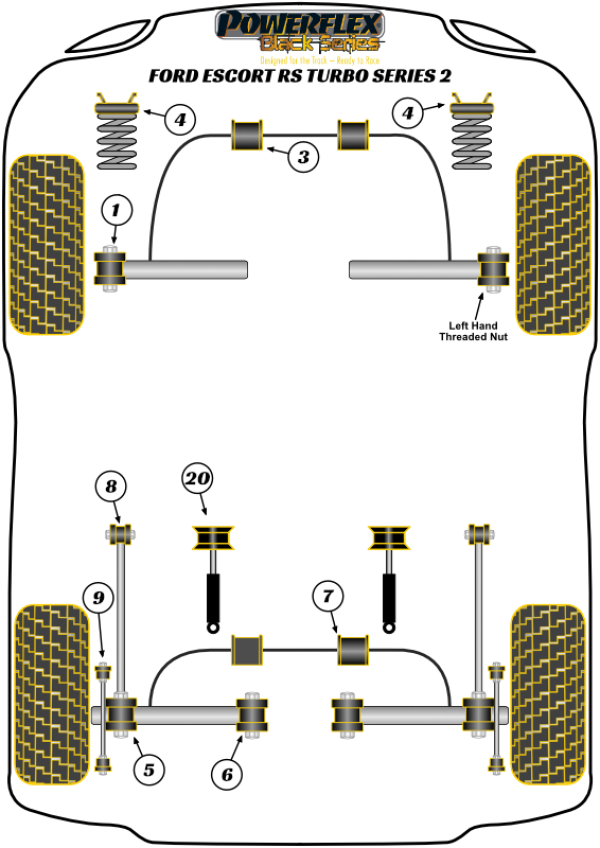

Notes SERIES TWO RS TURBO 1988 ON HAS LEFT HAND THREADED NUT FITTED TO RIGHT HAND END OF ANTI ROLL BAR - SEE APPLICATION DRAWING  FITMENT OF PFR19-207 MEANS THERE IS NO NEED TO REPLACE WHOLE ARM AS NO STANDARD REPLACEMENT BUSH IS AVAILABLE FROM FORD. |
 |
Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column
| Bush description | Quantity Per Car |

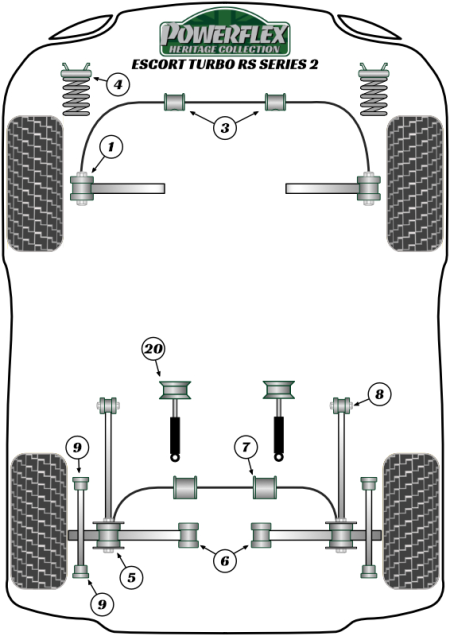

Diagram Reference |
Part Number |
Retail Price Each |
||||
|---|---|---|---|---|---|---|---|---|
| Front Outer Track Control Arm Bush | 2 | 1 | PFF19-201 |
|
||||
| Front Anti Roll Bar Mounting Bush 24mm | 2 | 3 | PFF19-205 |
|
||||
| Front Top Shock Absorber Mount | 2 | 4 | PFF19-199 |
|
||||
| Rear Tie Bar To Wishbone Bush | 2 | 5 | PFR19-203 |
|
||||
| Rear Inner Wishbone Bush | 2 | 6 | PFR19-207 |
|
||||
| Rear Anti-Roll Bar Mounting Bush 16mm | 2 | 7 | PFR19-210-16 |
|
||||
| Rear Tie Bar To Chassis Bush | 2 | 8 | PFR19-211 |
|
||||
| Rear Wishbone To Hub Bushes | 4 | 9 | PFR19-219 |
|
||||
| Exhaust Mounts | 3 | EXH 001 |
|
