Vauxhall / Opel - Signum (2003 - 2008)
 |
Notes:
|
 |
Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column
| Bush description | Quantity Per Car |

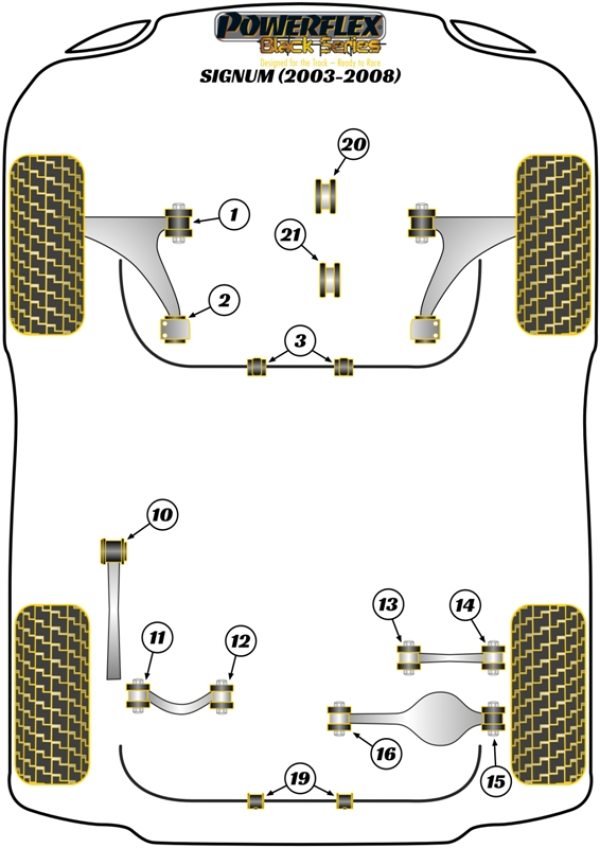

Diagram Reference |
Part Number |
Retail Price Each |
|||||
|---|---|---|---|---|---|---|---|---|---|
 |
Front Lower Wishbone Front Bush  Click for fitting instructions
|
2 | 1 | PFF80-1201 |
|
||||
 |
Front Lower Wishbone Rear Bush | 2 | 2 | PFF80-1202 |
|
||||
 |
Front Anti Roll Bar Mounting Bush 24mm | 2 | 3 | PFF66-503-24 |
|
||||
 |
Front Anti Roll Bar Mounting Bush 25mm | 2 | 3 | PFF66-503-25 |
|
||||
 |
Front Anti Roll Bar Mounting Bush 24mm (2 Piece) | 2 | 3 | PFF80-1203-24 |
|
||||
 |
Front Anti Roll Bar Mounting Bush 25mm (2 Piece) | 2 | 3 | PFF80-1203-25 |
|
||||
 |
Rear Trailing Arm Front Bush Click for fitting instructions
|
2 | 10 | PFR80-1210 |
|
||||
 |
Rear Upper Arm Outer Bush Click for fitting instructions
|
2 | 11 | PFR80-1211 |
|
||||
 |
Rear Upper Arm Inner Bush Click for fitting instructions
|
2 | 12 | PFR80-1212 |
|
||||
 |
Rear Toe Arm Inner Bush | 2 | 13 | PFR80-1213 |
|
||||
 |
Rear Toe Arm Outer Bush | 2 | 14 | PFR80-1214 |
|
||||
 |
Rear Lower Arm Outer Bush Click for fitting instructions
|
2 | 15 | PFR80-1215 |
|
||||
 |
Rear Lower Arm Inner Bush Click for fitting instructions
|
2 | 16 | PFR80-1216 |
|
||||
 |
Rear Anti Roll Bar Mounting Bush 17mm | 2 | 19 | PFR66-519-17 |
|
||||
 |
Rear Anti Roll Bar Mounting Bush 18mm | 2 | 19 | PFR66-519-18 |
|
||||
 |
Rear Anti Roll Bar Mounting Bush 19mm | 2 | 19 | PFR66-519-19 |
|
||||
| Front & Rear Lower Engine Mount Insert | 2 | 20 | PFF80-1220 |
|
|||||
| Front & Rear Lower Engine Mount Insert (Diesel) | 2 | 20 | PFF80-1220R |
|
