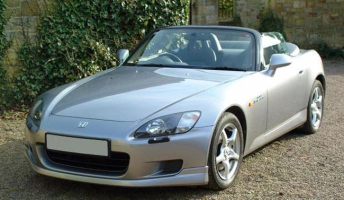

Honda - S2000

S2000

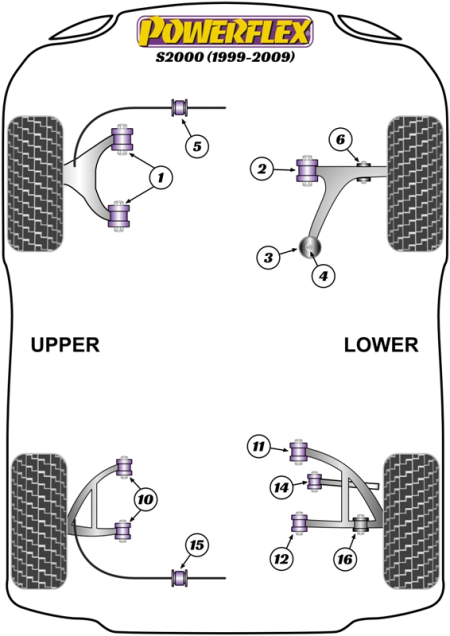

Download Car Diagram Download Catalogue Page

Need more help? Contact Us

Notes

  • PFF25-203G is a replacement caster adjustment kit which will fit standard Honda bush and PFF25-203.
  • Honda changed the rear upper wishbones in 2004, cars up to 2004 use PFR25-210 cars after seem to use either PFR25-209 or PFR25-210. Please measure the original bush to ensure the correct part number is ordered
  • PFR25-209 fits arms with a hole diameter of 42mm and length of 57mm
  • PFR25-210 fits arms with a hole diameter of 35mm and length of 47mm

Please Note That All Parts Are Listed And Priced Individually. The Amount Required Per Car Is Listed In The Quantity Per Car Column

In addition to the Road Series parts listed please check the Black Series website for other bushes suitable for this car that may be more suited to Track/Race use.


Bush description Quantity
Per Car		 Diagram
Reference		 Part
Number		 Retail Price
Each
Front Upper Wishbone Bush Front Upper Wishbone Bush 4 1 PFF25-201
Ex. VAT:   £17.27
Inc. VAT:   £20.72
Front Lower Wishbone Inner Bush Front Lower Wishbone Inner Bush 2 2 PFF25-202
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Front Arm Rear (Compliance) Bush Front Arm Rear (Compliance) Bush
Fitting instructions Click for fitting instructions 		2 3 PFF25-203
Ex. VAT:   £60.85
Inc. VAT:   £73.02
Stainless Steel Caster Adjustment Kit Stainless Steel Caster Adjustment Kit
Fitting instructions Click for fitting instructions 		2 4 PFF25-203G
Ex. VAT:   £68.50
Inc. VAT:   £82.20
Front Anti Roll Bar Bush 26.5mm Front Anti Roll Bar Bush 26.5mm 2 5 PFF25-205
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Front Anti Roll Bar Bush 28.2mm Front Anti Roll Bar Bush 28.2mm 2 5 PFF25-205-28.2
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Upper Wishbone Bush Rear Upper Wishbone Bush
Fitting instructions Click for fitting instructions 		4 10 PFR25-209
Ex. VAT:   £20.95
Inc. VAT:   £25.14
Rear Upper Wishbone Bush Rear Upper Wishbone Bush 4 10 PFR25-210
Ex. VAT:   £17.27
Inc. VAT:   £20.72
Rear Lower Wishbone Front Bush Rear Lower Wishbone Front Bush 2 11 PFR25-211
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Lower Wishbone Bush Rear Rear Lower Wishbone Bush Rear 2 12 PFR25-212
Ex. VAT:   £19.58
Inc. VAT:   £23.50
Rear Track Control Arm Bush Rear Track Control Arm Bush 2 14 PFR25-214
Ex. VAT:   £18.43
Inc. VAT:   £22.12
Rear Anti Roll Bar Bush 25.4mm Rear Anti Roll Bar Bush 25.4mm 2 15 PFR25-215
Ex. VAT:   £14.96
Inc. VAT:   £17.95
Rear Anti Roll Bar Bush 27.2mm Rear Anti Roll Bar Bush 27.2mm 2 15 PFR25-215-27.2
Ex. VAT:   £14.96
Inc. VAT:   £17.95
