Roll Bar Lateral Support Clamps
Part availability by series
| Part Ref. | Road Series | Heritage Collection | Black Series |
|---|
Anti-Roll Bars (ARBs) play an important role in a vehicle's suspension system, helping to reduce body roll by transferring cornering load from one side of a vehicle to the other.
Often mounted to the vehicle's chassis with rubber bushes, these bushes ensure the bar works as intended. To prevent the anti-roll bar from moving laterally within its mounts when turning, OE manufacturers will either bond the bushes to the bar, add dead-stops to the bar itself, or rely solely on the clamping pressure of the rubber.
But what happens when those bushes wear and need to be replaced?
Often anti-roll bars with bonded bushes come as a costly complete assembly, so the alternative is to fit a more cost-effective unbonded polyurethane replacement, like the many we offer.
In most cases, friction from the bush will prevent any side-to-side bar movement. Still, when turning aggressively or cornering at higher speeds, a laterally shifting anti-roll bar decreases its efficiency and effectiveness, changing the dynamics of your suspension system in unpredictable ways. It also poses the risk of the bar fouling on other areas of the vehicle or suspension system.

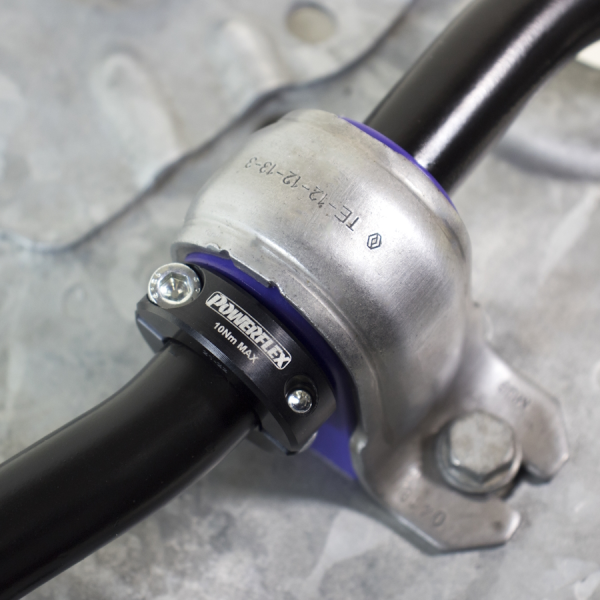

Made in precision CNC-machined 6082-T6 grade aluminium and anodised Black, with sizes to suit anti-roll bar diameters ranging from 13mm to 33 mm, these easy-to-fit, two-bolt clamps bolt to the side of each anti-roll bar bush to add lateral support and prevent any sidewards movement of the bar itself that might cause inconsistent handling.
Anti-Roll Bar Lateral Support Clamps 13-14mm
PFC13-14
Per Bush
£ 48.54
Per Car Set
£ 48.54
Per Bush
£ 40.45
Per Car Set
£ 40.45
Anti-Roll Bar Lateral Support Clamps 15-16mm
PFC15-16
Per Bush
£ 48.54
Per Car Set
£ 48.54
Per Bush
£ 40.45
Per Car Set
£ 40.45
Anti-Roll Bar Lateral Support Clamps 17-18mm
PFC17-18
Per Bush
£ 48.54
Per Car Set
£ 48.54
Per Bush
£ 40.45
Per Car Set
£ 40.45
Anti-Roll Bar Lateral Support Clamps 19-20mm
PFC19-20
Per Bush
£ 48.54
Per Car Set
£ 48.54
Per Bush
£ 40.45
Per Car Set
£ 40.45
Anti-Roll Bar Lateral Support Clamps 21-22mm
PFC21-22
Per Bush
£ 48.54
Per Car Set
£ 48.54
Per Bush
£ 40.45
Per Car Set
£ 40.45
Anti-Roll Bar Lateral Support Clamps 23-24mm
PFC23-24
Per Bush
£ 48.54
Per Car Set
£ 48.54
Per Bush
£ 40.45
Per Car Set
£ 40.45
Anti-Roll Bar Lateral Support Clamps 25-27mm
PFC25-27
Per Bush
£ 48.54
Per Car Set
£ 48.54
Per Bush
£ 40.45
Per Car Set
£ 40.45
Anti-Roll Bar Lateral Support Clamps 28-30mm
PFC28-30
Per Bush
£ 48.54
Per Car Set
£ 48.54
Per Bush
£ 40.45
Per Car Set
£ 40.45
Anti-Roll Bar Lateral Support Clamps 31-31mm
PFC31-33
Per Bush
£ 48.54
Per Car Set
£ 48.54
Per Bush
£ 40.45
Per Car Set
£ 40.45
Roll Bar Lateral Support Clamps
- Design for track
- Ready to Race
- Engineered to the best
Contact Us for all your bush suspension solutions
