Lifetime Warranty X1 E84 xDrive (2008-2015)

X1 E84 xDrive (2008-2015)

Click to enlarge

Click to enlarge

Click to enlarge

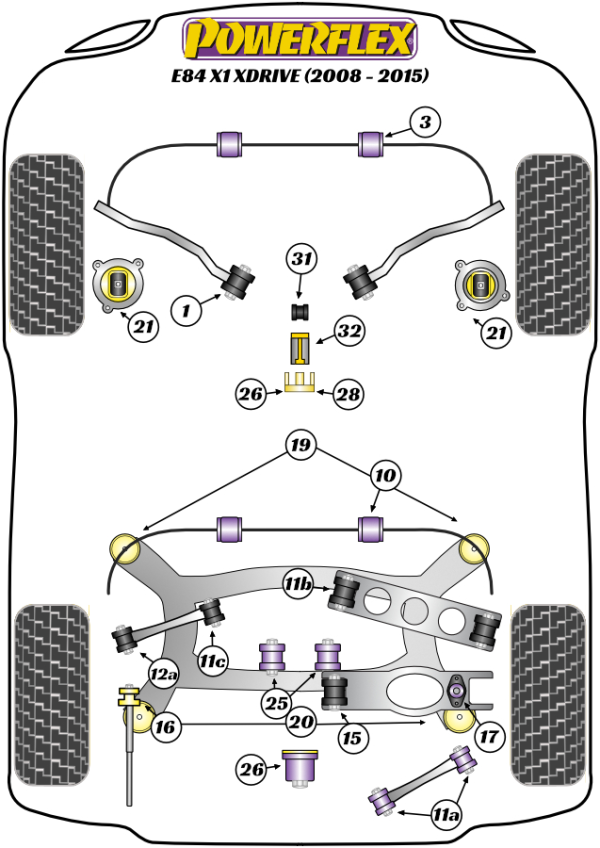

Part availability by series

Part Ref. Road Series Heritage Collection Black Series
1
3
10
11a
11b
11c
12a
15
16
19
20
21
25
26
27
28
31
32
70
Learn more about this series
Road Series
Learn more about this series
Black Series
Exc. VAT Inc. VAT
Price Help

  • PFF5-1526 fits transmission case bush inserts fit mounts with a T shape sleeve, for mounts with a round sleeve use PFF5-4628
  • PFR5-419 and PFR5-421 are inserts to be used with the original bushes
  • PFR5-420 and PFR5-422 are complete replacements for the original bushes
  • PFR5-1220 is a complete replacement bush for non-M models to raise the front of the rear subframe by 9mm providing the same anti-squat characteristic during acceleration as featured on M model vehicles
  • PFF5-4020 only fits the cars with the N55
  • PFF5-470 only fits vehicles with manual transmission.


  • PFR5-419 and PFR5-421 are inserts to be used with the original bushes
  • PFR5-420 and PFR5-422 are complete replacements for the original bushes
  • PFR5-1220 is a complete replacement bush for non-M models to raise the front of the rear subframe by 9mm providing the same anti-squat characteristic during acceleration as featured on M model vehicles
  • PFF5-4020 only fits the cars with the N55

    • Universal Exhaust Mount Universal Exhaust Mount

    EXH032

    Retail Price

    Per Bush

    £ 15.48

    Per Car Set

    £ 15.48

    Per Bush

    £ 12.90

    Per Car Set

    £ 12.90

    • Bushes
      per Car
    • 1
    • Diagram reference
    • N/A
    Jack Pad Adaptor Jack Pad Adaptor

    PF5-4660

    Retail Price

    Per Bush

    £ 22.62

    Per Car Set

    £ 22.62

    Per Bush

    £ 18.85

    Per Car Set

    £ 18.85

    • Bushes
      per Car
    • 1
    • Diagram reference
    • N/A
    PowerAlign Wheel Mounting Guide Pin PowerAlign Wheel Mounting Guide Pin

    PF99-512-15

    Retail Price

    Per Bush

    £ 28.44

    Per Car Set

    £ 28.44

    Per Bush

    £ 23.70

    Per Car Set

    £ 23.70

    • Bushes
      per Car
    • 1
    • Diagram reference
    • N/A
    Front Control Arm to Chassis Bush Front Control Arm to Chassis Bush

    PFF5-5701

    Retail Price

    Per Bush

    £ 53.10

    Per Car Set

    £ 106.20

    Per Bush

    £ 44.25

    Per Car Set

    £ 88.50

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 1
    Front Anti Roll Bar Mounting Bush 26.5mm Front Anti Roll Bar Mounting Bush 26.5mm

    PFF5-5703-26.5

    Retail Price

    Per Bush

    £ 29.16

    Per Car Set

    £ 58.32

    Per Bush

    £ 24.30

    Per Car Set

    £ 48.60

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 3
    Rear Anti Roll Bar Bush 11mm Rear Anti Roll Bar Bush 11mm

    PFR5-4609-11

    Retail Price

    Per Bush

    £ 28.44

    Per Car Set

    £ 56.88

    Per Bush

    £ 23.70

    Per Car Set

    £ 47.40

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 10
    Rear Anti Roll Bar Bush 12mm Rear Anti Roll Bar Bush 12mm

    PFR5-4609-12

    Retail Price

    Per Bush

    £ 28.44

    Per Car Set

    £ 56.88

    Per Bush

    £ 23.70

    Per Car Set

    £ 47.40

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 10
    Rear Anti Roll Bar Bush 12mm Rear Anti Roll Bar Bush 12mm

    PFR5-4609-12BLK

    Retail Price

    Per Bush

    £ 31.50

    Per Car Set

    £ 63.00

    Per Bush

    £ 26.25

    Per Car Set

    £ 52.50

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 10
    Rear Anti Roll Bar Bush 13mm Rear Anti Roll Bar Bush 13mm

    PFR5-4609-13

    Retail Price

    Per Bush

    £ 28.44

    Per Car Set

    £ 56.88

    Per Bush

    £ 23.70

    Per Car Set

    £ 47.40

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 10
    Rear Anti Roll Bar Bush 13mm Rear Anti Roll Bar Bush 13mm

    PFR5-4609-13BLK

    Retail Price

    Per Bush

    £ 31.50

    Per Car Set

    £ 63.00

    Per Bush

    £ 26.25

    Per Car Set

    £ 52.50

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 10
    Rear Anti Roll Bar Bush 14mm Rear Anti Roll Bar Bush 14mm

    PFR5-4609-14

    Retail Price

    Per Bush

    £ 28.44

    Per Car Set

    £ 56.88

    Per Bush

    £ 23.70

    Per Car Set

    £ 47.40

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 10
    Rear Anti Roll Bar Bush 15mm Rear Anti Roll Bar Bush 15mm

    PFR5-4609-15

    Retail Price

    Per Bush

    £ 28.44

    Per Car Set

    £ 56.88

    Per Bush

    £ 23.70

    Per Car Set

    £ 47.40

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 10
    Rear Toe Adjust Arm Inner & Outer Bush Rear Toe Adjust Arm Inner & Outer Bush

    PFR5-411

    Retail Price

    Per Bush

    £ 49.86

    Per Car Set

    £ 199.44

    Per Bush

    £ 41.55

    Per Car Set

    £ 166.20

    • Bushes
      per Car
    • 4
    • Diagram reference
    • 11a
    Rear Trailing Arm Inner & Outer Bush Rear Trailing Arm Inner & Outer Bush

    PFR5-411

    Retail Price

    Per Bush

    £ 49.86

    Per Car Set

    £ 199.44

    Per Bush

    £ 41.55

    Per Car Set

    £ 166.20

    • Bushes
      per Car
    • 4
    • Diagram reference
    • 11b
    Rear Upper Control Arm To Chassis Bush Rear Upper Control Arm To Chassis Bush

    PFR5-411

    Retail Price

    Per Bush

    £ 49.86

    Per Car Set

    £ 99.72

    Per Bush

    £ 41.55

    Per Car Set

    £ 83.10

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 11c
    Rear Upper Control Arm To Hub Bush Rear Upper Control Arm To Hub Bush

    PFR5-412

    Retail Price

    Per Bush

    £ 51.78

    Per Car Set

    £ 103.56

    Per Bush

    £ 43.15

    Per Car Set

    £ 86.30

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 12a
    Rear Lower Lateral Arm To Chassis Bush Rear Lower Lateral Arm To Chassis Bush

    PFR5-415

    Retail Price

    Per Bush

    £ 42.06

    Per Car Set

    £ 84.12

    Per Bush

    £ 35.05

    Per Car Set

    £ 70.10

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 15
    Rear Upper Shock Mounting Bush 10mm Rear Upper Shock Mounting Bush 10mm

    PFR5-416

    Retail Price

    Per Bush

    £ 36.90

    Per Car Set

    £ 73.80

    Per Bush

    £ 30.75

    Per Car Set

    £ 61.50

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 16
    Rear Upper Shock Mounting Bush 12mm Rear Upper Shock Mounting Bush 12mm

    PFR5-416-12

    Retail Price

    Per Bush

    £ 36.90

    Per Car Set

    £ 73.80

    Per Bush

    £ 30.75

    Per Car Set

    £ 61.50

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 16
    Rear Subframe Front Mounting Bush Anti-Squat (Fast Road) Rear Subframe Front Mounting Bush Anti-Squat (Fast Road)

    PFR5-1220

    Retail Price

    Per Bush

    £ 85.50

    Per Car Set

    £ 171.00

    Per Bush

    £ 71.25

    Per Car Set

    £ 142.50

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 19
    Rear Subframe Front Mounting Insert Rear Subframe Front Mounting Insert

    PFR5-419

    Retail Price

    Per Bush

    £ 37.50

    Per Car Set

    £ 75.00

    Per Bush

    £ 31.25

    Per Car Set

    £ 62.50

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 19
    Rear Subframe Front Mounting Bush (Road) Rear Subframe Front Mounting Bush (Road)

    PFR5-420

    Retail Price

    Per Bush

    £ 84.18

    Per Car Set

    £ 168.36

    Per Bush

    £ 70.15

    Per Car Set

    £ 140.30

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 19
    Rear Subframe Front Mounting Bush (Fast Road) Rear Subframe Front Mounting Bush (Fast Road)

    PFR5-420P

    Retail Price

    Per Bush

    £ 84.18

    Per Car Set

    £ 168.36

    Per Bush

    £ 70.15

    Per Car Set

    £ 140.30

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 19
    Rear Subframe Rear Mounting Insert Rear Subframe Rear Mounting Insert

    PFR5-421

    Retail Price

    Per Bush

    £ 36.24

    Per Car Set

    £ 72.48

    Per Bush

    £ 30.20

    Per Car Set

    £ 60.40

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 20
    Rear Subframe Rear Mounting Bush (Road) Rear Subframe Rear Mounting Bush (Road)

    PFR5-422

    Retail Price

    Per Bush

    £ 71.22

    Per Car Set

    £ 142.44

    Per Bush

    £ 59.35

    Per Car Set

    £ 118.70

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 20
    Rear Subframe Rear Mounting Bush (Fast Road) Rear Subframe Rear Mounting Bush (Fast Road)

    PFR5-422P

    Retail Price

    Per Bush

    £ 78.36

    Per Car Set

    £ 156.72

    Per Bush

    £ 65.30

    Per Car Set

    £ 130.60

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 20
    Engine Mount Insert Kit Engine Mount Insert Kit

    PFF5-4020

    Retail Price

    Per Bush

    £ 41.40

    Per Car Set

    £ 41.40

    Per Bush

    £ 34.50

    Per Car Set

    £ 34.50

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 21
    Rear Diff Front Mounting Bush Rear Diff Front Mounting Bush

    PFR5-425

    Retail Price

    Per Bush

    £ 42.06

    Per Car Set

    £ 84.12

    Per Bush

    £ 35.05

    Per Car Set

    £ 70.10

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 25
    Rear Diff Rear Mounting Bush Rear Diff Rear Mounting Bush

    PFR5-426

    Retail Price

    Per Bush

    £ 49.20

    Per Car Set

    £ 49.20

    Per Bush

    £ 41.00

    Per Car Set

    £ 41.00

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 26
    Transfer Case Bush Insert (Petrol) Transfer Case Bush Insert (Petrol)

    PFF5-1526

    Retail Price

    Per Bush

    £ 28.14

    Per Car Set

    £ 28.14

    Per Bush

    £ 23.45

    Per Car Set

    £ 23.45

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 27
    Transfer Case Bush Insert (Tuned/Track) Transfer Case Bush Insert (Tuned/Track)

    PFF5-1526P

    Retail Price

    Per Bush

    £ 28.14

    Per Car Set

    £ 28.14

    Per Bush

    £ 23.45

    Per Car Set

    £ 23.45

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 27
    Transfer Case Bush Insert (Diesel) Transfer Case Bush Insert (Diesel)

    PFF5-1526R

    Retail Price

    Per Bush

    £ 28.14

    Per Car Set

    £ 28.14

    Per Bush

    £ 23.45

    Per Car Set

    £ 23.45

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 27
    Transfer Case Bush Insert (Standard) Transfer Case Bush Insert (Standard)

    PFF5-4628

    Retail Price

    Per Bush

    £ 30.42

    Per Car Set

    £ 30.42

    Per Bush

    £ 25.35

    Per Car Set

    £ 25.35

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 28
    Transfer Case Bush Insert (Tuned/Track) Transfer Case Bush Insert (Tuned/Track)

    PFF5-4628P

    Retail Price

    Per Bush

    £ 30.42

    Per Car Set

    £ 30.42

    Per Bush

    £ 25.35

    Per Car Set

    £ 25.35

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 28
    Gear Shift Arm Front Bush Oval Gear Shift Arm Front Bush Oval

    PFF5-4631

    Retail Price

    Per Bush

    £ 25.20

    Per Car Set

    £ 25.20

    Per Bush

    £ 21.00

    Per Car Set

    £ 21.00

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 31
    Shift Arm Front Bush Ultra-Oval Shift Arm Front Bush Ultra-Oval

    PFF5-4634

    Retail Price

    Per Bush

    £ 25.20

    Per Car Set

    £ 50.40

    Per Bush

    £ 21.00

    Per Car Set

    £ 42.00

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 31
    Shift Arm Front Bush Ultra-Oval Shift Arm Front Bush Ultra-Oval

    PFF5-4634BLK

    Retail Price

    Per Bush

    £ 25.20

    Per Car Set

    £ 50.40

    Per Bush

    £ 21.00

    Per Car Set

    £ 42.00

    • Bushes
      per Car
    • 2
    • Diagram reference
    • 31
    Shifter Arm Rear Bush Shifter Arm Rear Bush

    PFF5-4632

    Retail Price

    Per Bush

    £ 37.50

    Per Car Set

    £ 37.50

    Per Bush

    £ 31.25

    Per Car Set

    £ 31.25

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 32
    Clutch Fork Pivot Pin Clutch Fork Pivot Pin

    PFF5-470

    Retail Price

    Per Bush

    £ 25.86

    Per Car Set

    £ 25.86

    Per Bush

    £ 21.55

    Per Car Set

    £ 21.55

    • Bushes
      per Car
    • 1
    • Diagram reference
    • 70

    X1 E84 xDrive (2008-2015)

    Back to Model Not sure How to Order? click here

    A range of bushes engineered for the road to compliment your classic car.

    Find out more
    Heritage Products
    Powerflex Black Series
    • Design for track
    • Ready to Race
    • Engineered to the best
    Find out more
    Get race ready with the Powerflex Black Series

    Contact Us for all your bush suspension solutions

    We are very proud to be a certified ISO9001 company and receiver of the Queens’s Award for Enterprise and international trade 2013

    Accredited ISO9001 company The Queens Award for Enterprise & International Trade 2013 PAAA

    NL2025-26 Porsche 964 Rear Spring Plate

    26th June 2025

    NL2025-26 Porsche 964 Rear Spring Plate

    A true premium upgrade, providing greater chassis control and precision, engineered for high performance and increased durability.

    Read more
    NL2025-15 VW T25 Front Spring Isolator & Easter Closing

    11th April 2025

    NL2025-15 VW T25 Front Spring Isolator & Easter Closing

    Designed to accept OEM and aftermarket springs whilst outlasting and outperforming rubber alternatives.

    Read more
    Next

    Join us on

    Share your race stories, bush installations & cars with us!

    ©EPTG Ltd. All Rights Reserved
    Site designed & developed
    by Neon Digital
    close
