Lifetime Warranty Impreza Turbo inc. WRX & STi GD,GG (2000 - 2007)

Impreza Turbo inc. WRX & STi GD,GG (2000 - 2007)

Click to enlarge

Click to enlarge

Click to enlarge

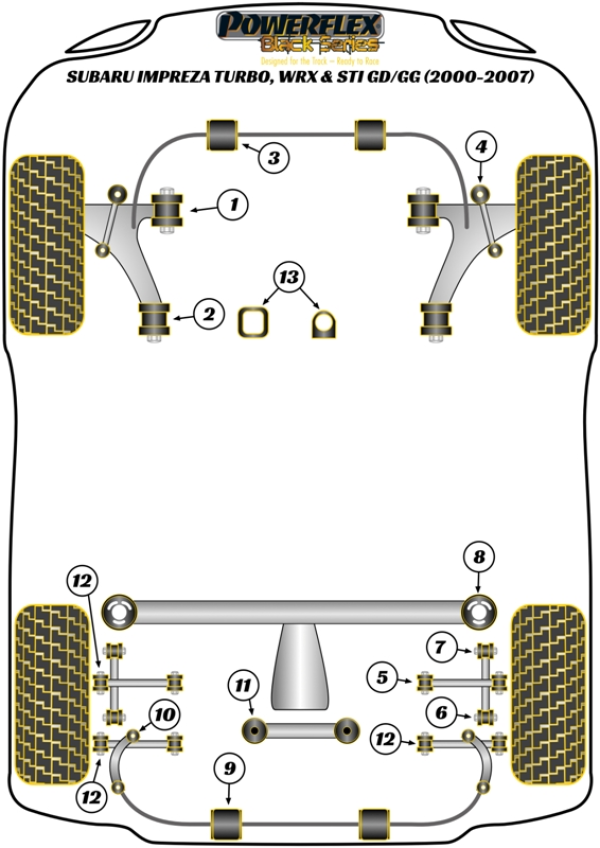

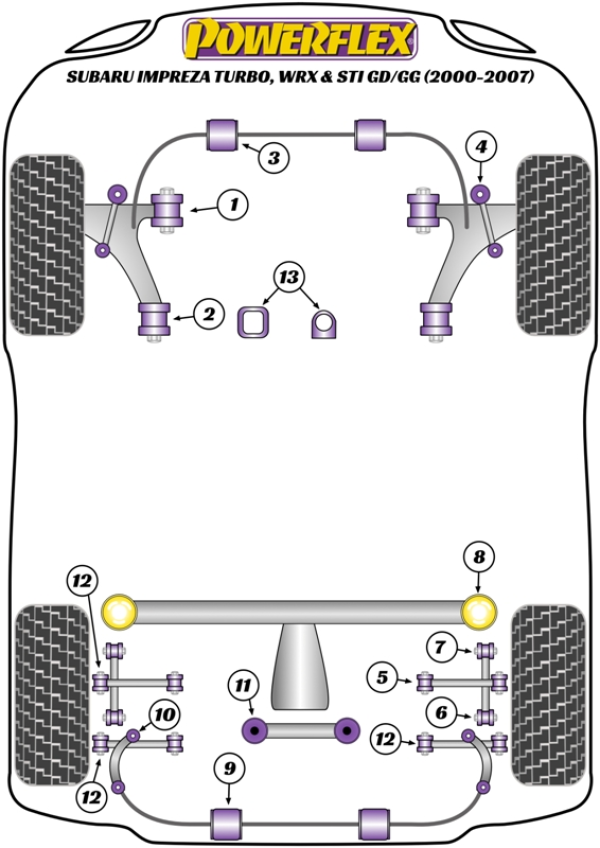

Part availability by series

Part Ref. Road Series Heritage Collection Black Series
1
2
3
4
5
6
7
8
9
10
11
12
13
Learn more about this series
Road Series
Learn more about this series
Heritage Collection
Learn more about this series
Black Series
Exc. VAT Inc. VAT
Price Help
  • Front wishbones can be steel or alloy - our bushes will fit both.
  • The Rear Lateral Link Front Inner Bush uses a smaller 12mm bolt. To replace all Rear Lateral Link bushes, use 6 x PFR69-110 & 2 x PFR69-111.
  • PFF69-107 will only fit pressed steel lower arms.
  • PFR69-122 are for Rear Diffs that mount directly to the subframe.
  • PFF69-102G is geometry adjustable and allows +/-0.33 degrees of Caster adjustment.
  • For Rear Anti Roll Bar Bushes Use PF69-303-* up to 10/02, PFR69-305-* 11/02 on.
  • PFF69-109K fits years 2000 to 2004 only (click here to confirm the correct type).
  • For vehicles pre-December 2001, please use PFR69-118 on both sides of the beam.
  • For vehicles from December 2001 on, please use PFR69-118 on the LH side of the beam and PFR69-124 on the RH side of the beam as shown below.


  • Front wishbones can be steel or alloy - our bushes will fit both.
  • The Rear Lateral Link Front Inner Bush uses a smaller 12mm bolt. To replace all Rear Lateral Link bushes, use 6 x PFR69-110 & 2 x PFR69-111.
  • PFF69-107 will only fit pressed steel lower arms.
  • PFR69-122 are for Rear Diffs that mount directly to the subframe.
  • PFF69-102G is geometry adjustable and allows +/-0.33 degrees of Caster adjustment.
  • For Rear Anti Roll Bar Bushes Use PF69-303-* up to 10/02, PFR69-305-* 11/02 on.
  • PFF69-109K fits years 2000 to 2004 only (click here to confirm the correct type).
  • For vehicles pre-December 2001, please use PFR69-118 on both sides of the beam.
  • For vehicles from December 2001 on, please use PFR69-118 on the LH side of the beam and PFR69-124 on the RH side of the beam as shown below.


  • Front wishbones can be steel or alloy - our bushes will fit both.
  • The Rear Lateral Link Front Inner Bush uses a smaller 12mm bolt. To replace all Rear Lateral Link bushes, use 6 x PFR69-110 & 2 x PFR69-111.
  • PFF69-107 will only fit pressed steel lower arms.
  • PFR69-122 are for Rear Diffs that mount directly to the subframe.
  • PFF69-102G is geometry adjustable and allows +/-0.33 degrees of Caster adjustment.
  • For Rear Anti Roll Bar Bushes Use PF69-303-* up to 10/02, PFR69-305-* 11/02 on.
  • PFF69-109K fits years 2000 to 2004 only (click here to confirm the correct type).
  • For vehicles pre-December 2001, please use PFR69-118 on both sides of the beam.
  • For vehicles from December 2001 on, please use PFR69-118 on the LH side of the beam and PFR69-124 on the RH side of the beam as shown below.


PowerAlign Camber Bolt Kit (14mm) PowerAlign Camber Bolt Kit (14mm)

PFA100-14

Retail Price

Per Bush

£ 28.44

Per Car Set

£ 28.44

Per Bush

£ 23.70

Per Car Set

£ 23.70

  • Bushes
    per Car
  • 1
  • Diagram reference
  • N/A
PowerAlign Camber Bolt Kit (14mm) PowerAlign Camber Bolt Kit (14mm)

PFA100-14

Retail Price

Per Bush

£ 28.44

Per Car Set

£ 28.44

Per Bush

£ 23.70

Per Car Set

£ 23.70

  • Bushes
    per Car
  • 1
  • Diagram reference
  • N/A
PowerAlign Camber Bolt Kit (16mm) PowerAlign Camber Bolt Kit (16mm)

PFA100-16

Retail Price

Per Bush

£ 31.68

Per Car Set

£ 31.68

Per Bush

£ 26.40

Per Car Set

£ 26.40

  • Bushes
    per Car
  • 1
  • Diagram reference
  • N/A
PowerAlign Camber Bolt Kit (16mm) PowerAlign Camber Bolt Kit (16mm)

PFA100-16

Retail Price

Per Bush

£ 31.68

Per Car Set

£ 31.68

Per Bush

£ 26.40

Per Car Set

£ 26.40

  • Bushes
    per Car
  • 1
  • Diagram reference
  • N/A
Front Wishbone Front Bush Front Wishbone Front Bush

PFF69-201

Retail Price

Per Bush

£ 35.58

Per Car Set

£ 71.16

Per Bush

£ 29.65

Per Car Set

£ 59.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 1
Front Wishbone Front Bush Front Wishbone Front Bush

PFF69-201BLK

Retail Price

Per Bush

£ 39.12

Per Car Set

£ 78.24

Per Bush

£ 32.60

Per Car Set

£ 65.20

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 1
Front Wishbone Rear Bush Front Wishbone Rear Bush

PFF69-102

Retail Price

Per Bush

£ 44.64

Per Car Set

£ 89.28

Per Bush

£ 37.20

Per Car Set

£ 74.40

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 2
Front Wishbone Rear Bush Front Wishbone Rear Bush

PFF69-102BLK

Retail Price

Per Bush

£ 49.14

Per Car Set

£ 98.28

Per Bush

£ 40.95

Per Car Set

£ 81.90

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 2
Front Arm Rear Bush - Caster Adjust Front Arm Rear Bush - Caster Adjust

PFF69-102G

Retail Price

Per Bush

£ 60.18

Per Car Set

£ 120.36

Per Bush

£ 50.15

Per Car Set

£ 100.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 2
Front Arm Rear Bush - Caster Adjust Front Arm Rear Bush - Caster Adjust

PFF69-102GBLK

Retail Price

Per Bush

£ 66.66

Per Car Set

£ 133.32

Per Bush

£ 55.55

Per Car Set

£ 111.10

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 2
Front Anti Roll Bar Bush 18mm Front Anti Roll Bar Bush 18mm

PFF69-205-18

Retail Price

Per Bush

£ 23.94

Per Car Set

£ 47.88

Per Bush

£ 19.95

Per Car Set

£ 39.90

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar Bush 18mm Front Anti Roll Bar Bush 18mm

PFF69-205-18BLK

Retail Price

Per Bush

£ 26.28

Per Car Set

£ 52.56

Per Bush

£ 21.90

Per Car Set

£ 43.80

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar Bush 19mm Front Anti Roll Bar Bush 19mm

PFF69-205-19

Retail Price

Per Bush

£ 23.94

Per Car Set

£ 47.88

Per Bush

£ 19.95

Per Car Set

£ 39.90

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar Bush 19mm Front Anti Roll Bar Bush 19mm

PFF69-205-19BLK

Retail Price

Per Bush

£ 26.28

Per Car Set

£ 52.56

Per Bush

£ 21.90

Per Car Set

£ 43.80

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar Bush 20mm Front Anti Roll Bar Bush 20mm

PFF69-205-20

Retail Price

Per Bush

£ 23.28

Per Car Set

£ 46.56

Per Bush

£ 19.40

Per Car Set

£ 38.80

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar Bush 20mm Front Anti Roll Bar Bush 20mm

PFF69-205-20BLK

Retail Price

Per Bush

£ 25.62

Per Car Set

£ 51.24

Per Bush

£ 21.35

Per Car Set

£ 42.70

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar Bush 22mm Front Anti Roll Bar Bush 22mm

PFF69-205-22

Retail Price

Per Bush

£ 23.28

Per Car Set

£ 46.56

Per Bush

£ 19.40

Per Car Set

£ 38.80

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar Bush 22mm Front Anti Roll Bar Bush 22mm

PFF69-205-22BLK

Retail Price

Per Bush

£ 25.62

Per Car Set

£ 51.24

Per Bush

£ 21.35

Per Car Set

£ 42.70

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar Bush 23mm Front Anti Roll Bar Bush 23mm

PFF69-205-23

Retail Price

Per Bush

£ 23.28

Per Car Set

£ 46.56

Per Bush

£ 19.40

Per Car Set

£ 38.80

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar Bush 23mm Front Anti Roll Bar Bush 23mm

PFF69-205-23BLK

Retail Price

Per Bush

£ 25.62

Per Car Set

£ 51.24

Per Bush

£ 21.35

Per Car Set

£ 42.70

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 3
Front Anti Roll Bar End Link Front Anti Roll Bar End Link

PFF69-107

Retail Price

Per Bush

£ 36.24

Per Car Set

£ 72.48

Per Bush

£ 30.20

Per Car Set

£ 60.40

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 4
Front Anti Roll Bar End Link Front Anti Roll Bar End Link

PFF69-107BLK

Retail Price

Per Bush

£ 40.14

Per Car Set

£ 80.28

Per Bush

£ 33.45

Per Car Set

£ 66.90

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 4
Rear Lateral Link Front Inner Bush Rear Lateral Link Front Inner Bush

PFR69-111

Retail Price

Per Bush

£ 31.68

Per Car Set

£ 63.36

Per Bush

£ 26.40

Per Car Set

£ 52.80

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 5
Rear Lateral Link Front Inner Bush Rear Lateral Link Front Inner Bush

PFR69-111BLK

Retail Price

Per Bush

£ 34.86

Per Car Set

£ 69.72

Per Bush

£ 29.05

Per Car Set

£ 58.10

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 5
Rear Trailing Link Rear Bush Rear Trailing Link Rear Bush

PFR69-115

Retail Price

Per Bush

£ 34.92

Per Car Set

£ 69.84

Per Bush

£ 29.10

Per Car Set

£ 58.20

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 6
Rear Trailing Link Rear Bush Rear Trailing Link Rear Bush

PFR69-115BLK

Retail Price

Per Bush

£ 38.40

Per Car Set

£ 76.80

Per Bush

£ 32.00

Per Car Set

£ 64.00

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 6
Rear Trailing Link Front Bush Rear Trailing Link Front Bush

PFR69-117

Retail Price

Per Bush

£ 40.74

Per Car Set

£ 81.48

Per Bush

£ 33.95

Per Car Set

£ 67.90

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 7
Rear Trailing Link Front Bush Rear Trailing Link Front Bush

PFR69-117BLK

Retail Price

Per Bush

£ 44.82

Per Car Set

£ 89.64

Per Bush

£ 37.35

Per Car Set

£ 74.70

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 7
Rear Subframe-Front Outrigger To Chassis Left Side Rear Subframe-Front Outrigger To Chassis Left Side

PFR69-118

Retail Price

Per Bush

£ 48.54

Per Car Set

£ 48.54

Per Bush

£ 40.45

Per Car Set

£ 40.45

  • Bushes
    per Car
  • 1
  • Diagram reference
  • 8
Rear Subframe-Front Outrigger To Chassis Left Side Rear Subframe-Front Outrigger To Chassis Left Side

PFR69-118BLK

Retail Price

Per Bush

£ 53.40

Per Car Set

£ 53.40

Per Bush

£ 44.50

Per Car Set

£ 44.50

  • Bushes
    per Car
  • 1
  • Diagram reference
  • 8
Rear Subframe-Front Outrigger To Chassis Right Side Rear Subframe-Front Outrigger To Chassis Right Side

PFR69-124

Retail Price

Per Bush

£ 52.44

Per Car Set

£ 52.44

Per Bush

£ 43.70

Per Car Set

£ 43.70

  • Bushes
    per Car
  • 1
  • Diagram reference
  • 8
Rear Subframe-Front Outrigger To Chassis Right Side Rear Subframe-Front Outrigger To Chassis Right Side

PFR69-124BLK

Retail Price

Per Bush

£ 57.66

Per Car Set

£ 57.66

Per Bush

£ 48.05

Per Car Set

£ 48.05

  • Bushes
    per Car
  • 1
  • Diagram reference
  • 8
Rear Anti Roll Bar To Chassis Bush 15mm Rear Anti Roll Bar To Chassis Bush 15mm

PF69-303-15

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 15mm Rear Anti Roll Bar To Chassis Bush 15mm

PF69-303-15H

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 17mm Rear Anti Roll Bar To Chassis Bush 17mm

PF69-303-17

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 17mm Rear Anti Roll Bar To Chassis Bush 17mm

PF69-303-17H

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 18mm Rear Anti Roll Bar To Chassis Bush 18mm

PF69-303-18

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 18mm Rear Anti Roll Bar To Chassis Bush 18mm

PF69-303-18BLK

Retail Price

Per Bush

£ 25.32

Per Car Set

£ 50.64

Per Bush

£ 21.10

Per Car Set

£ 42.20

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 19mm Rear Anti Roll Bar To Chassis Bush 19mm

PF69-303-19

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 19mm Rear Anti Roll Bar To Chassis Bush 19mm

PF69-303-19BLK

Retail Price

Per Bush

£ 25.32

Per Car Set

£ 50.64

Per Bush

£ 21.10

Per Car Set

£ 42.20

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 20mm Rear Anti Roll Bar To Chassis Bush 20mm

PF69-303-20

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 20mm Rear Anti Roll Bar To Chassis Bush 20mm

PF69-303-20BLK

Retail Price

Per Bush

£ 25.32

Per Car Set

£ 50.64

Per Bush

£ 21.10

Per Car Set

£ 42.20

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 14mm Rear Anti Roll Bar To Chassis Bush 14mm

PFR69-305-14

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 17mm Rear Anti Roll Bar To Chassis Bush 17mm

PFR69-305-17

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 18mm Rear Anti Roll Bar To Chassis Bush 18mm

PFR69-305-18

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 19mm Rear Anti Roll Bar To Chassis Bush 19mm

PFR69-305-19

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 19mm Rear Anti Roll Bar To Chassis Bush 19mm

PFR69-305-19BLK

Retail Price

Per Bush

£ 25.32

Per Car Set

£ 50.64

Per Bush

£ 21.10

Per Car Set

£ 42.20

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 20mm Rear Anti Roll Bar To Chassis Bush 20mm

PFR69-305-20

Retail Price

Per Bush

£ 22.98

Per Car Set

£ 45.96

Per Bush

£ 19.15

Per Car Set

£ 38.30

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Anti Roll Bar To Chassis Bush 20mm Rear Anti Roll Bar To Chassis Bush 20mm

PFR69-305-20BLK

Retail Price

Per Bush

£ 25.32

Per Car Set

£ 50.64

Per Bush

£ 21.10

Per Car Set

£ 42.20

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 9
Rear Roll Bar Link Bush Rear Roll Bar Link Bush

PFR69-119

Retail Price

Per Bush

£ 29.76

Per Car Set

£ 119.04

Per Bush

£ 24.80

Per Car Set

£ 99.20

  • Bushes
    per Car
  • 4
  • Diagram reference
  • 10
Rear Roll Bar Link Bush Rear Roll Bar Link Bush

PFR69-119BLK

Retail Price

Per Bush

£ 32.70

Per Car Set

£ 130.80

Per Bush

£ 27.25

Per Car Set

£ 109.00

  • Bushes
    per Car
  • 4
  • Diagram reference
  • 10
Rear Diff Mounting Bush Rear Diff Mounting Bush

PFR69-122

Retail Price

Per Bush

£ 41.40

Per Car Set

£ 82.80

Per Bush

£ 34.50

Per Car Set

£ 69.00

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 11
Rear Diff Mounting Bush Rear Diff Mounting Bush

PFR69-122BLK

Retail Price

Per Bush

£ 45.54

Per Car Set

£ 91.08

Per Bush

£ 37.95

Per Car Set

£ 75.90

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 11
Rear Diff Mounting Bush Rear Diff Mounting Bush

PFR69-122H

Retail Price

Per Bush

£ 41.40

Per Car Set

£ 82.80

Per Bush

£ 34.50

Per Car Set

£ 69.00

  • Bushes
    per Car
  • 2
  • Diagram reference
  • 11
Rear Lateral Link Bush Rear Lateral Link Bush

PFR69-110

Retail Price

Per Bush

£ 31.02

Per Car Set

£ 186.12

Per Bush

£ 25.85

Per Car Set

£ 155.10

  • Bushes
    per Car
  • 6
  • Diagram reference
  • 12
Rear Lateral Link Bush Rear Lateral Link Bush

PFR69-110BLK

Retail Price

Per Bush

£ 34.14

Per Car Set

£ 204.84

Per Bush

£ 28.45

Per Car Set

£ 170.70

  • Bushes
    per Car
  • 6
  • Diagram reference
  • 12
Steering Rack Mount Bushes Steering Rack Mount Bushes

PFF69-109K

Retail Price

Per Bush

£ 38.16

Per Car Set

£ 38.16

Per Bush

£ 31.80

Per Car Set

£ 31.80

  • Bushes
    per Car
  • 1
  • Diagram reference
  • 13
Steering Rack Mount Bushes Steering Rack Mount Bushes

PFF69-109KBLK

Retail Price

Per Bush

£ 38.16

Per Car Set

£ 38.16

Per Bush

£ 31.80

Per Car Set

£ 31.80

  • Bushes
    per Car
  • 1
  • Diagram reference
  • 13
Exhaust Mount Exhaust Mount

EXH009

Retail Price

Per Bush

£ 13.56

Per Car Set

£ 13.56

Per Bush

£ 11.30

Per Car Set

£ 11.30

  • Bushes
    per Car
  • 1
  • Diagram reference
  • N/A
Exhaust Mount Exhaust Mount

EXH009

Retail Price

Per Bush

£ 13.56

Per Car Set

£ 40.68

Per Bush

£ 11.30

Per Car Set

£ 33.90

  • Bushes
    per Car
  • 3
  • Diagram reference
  • N/A

Impreza Turbo inc. WRX & STi GD,GG (2000 - 2007)

Back to Model Not sure How to Order? click here

A range of bushes engineered for the road to compliment your classic car.

Find out more
Heritage Products
Powerflex Black Series
  • Design for track
  • Ready to Race
  • Engineered to the best
Find out more
Get race ready with the Powerflex Black Series

Contact Us for all your bush suspension solutions

We are very proud to be a certified ISO9001 company and receiver of the Queens’s Award for Enterprise and international trade 2013

Accredited ISO9001 company The Queens Award for Enterprise & International Trade 2013 PAAA

NL2015-25 Mazda MX5

26th June 2015

NL2015-25 Mazda MX5

Today we are announcing an addition to our range of suspension and mounting bushes for the Mazda MX5 Mk1 and Mk2, known globally as the Miata and Eunos.

Read more
NL2015-24 Caterham 7

18th June 2015

NL2015-24 Caterham 7

​Three new bushes have been introduced to our Caterham 7 range of bushes. Please check the two new catalogue pages which have been added covering the bushes fitted to the metric chassis of the DeDion with and without Watts linkage models.

Read more
Previous Next

Join us on

Share your race stories, bush installations & cars with us!

©EPTG Ltd. All Rights Reserved
Site designed & developed
by Neon Digital
close
