E46 Sedan / Touring / Coupe / Conv

Click to enlarge

Part availability by series

Part Ref.	Road Series	Heritage Collection	Black Series
1
2
3
4
10
11
17
18
19
25
26
30
31
32
35
45
46
50
52
55
70

Learn more about this series

Road Series

Learn more about this series

Heritage Collection

Learn more about this series

Black Series

Exc. VAT Inc. VAT

Price Help

PFF5-4655 does not fit cars with automatic transmission
PFF5-4601 & PFF5-5601 fit brackets with a 66mm bore
PFF5-4601-60 & PFF5-5601-60 fit brackets with a 60mm bore, usually found on earlier models.
PFF5-5601G & PFF5-5601G-60 give an additional +0.5° Caster
PFR5-4610 & 4611 are complete replacement bushes, for inserts use PFR5-4613 & 4614 (inserts fit into the voiding of the original bush)
PFR5-4615G replaces the original arm and inner bush and allows on-car adjustment of camber. For a replacement bush only to fit in the original arm, please use PFR5-4616.
PFR5-5630-10 fits cars with standard or aftermarket rear shock absorber with a 10mm pin, PFR5-5630-12 fits cars with aftermarket rear shock absorbers with a 12mm pin. Neither fit Cabriolet models
PFF5-4650 does not fit xDrive models. Not recommended for Diesel models.
PFF5-470 only fits vehicles with manual transmission.

+ Show All Notes

Jack Pad Adaptor

PF5-4660

Retail Price

Per Bush

£ 18.85

Per Car Set

£ 18.85

Bushes
per Car
1

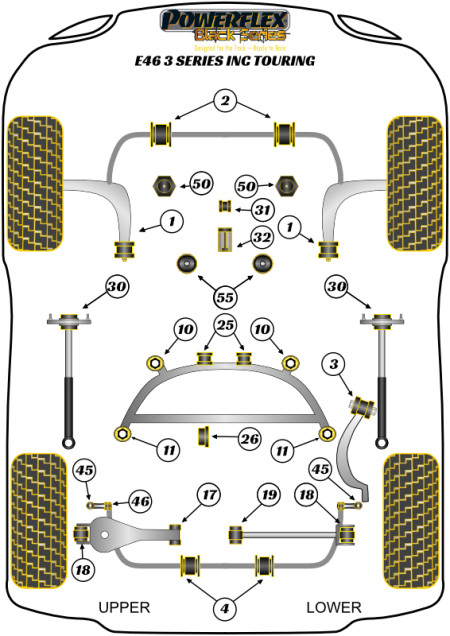

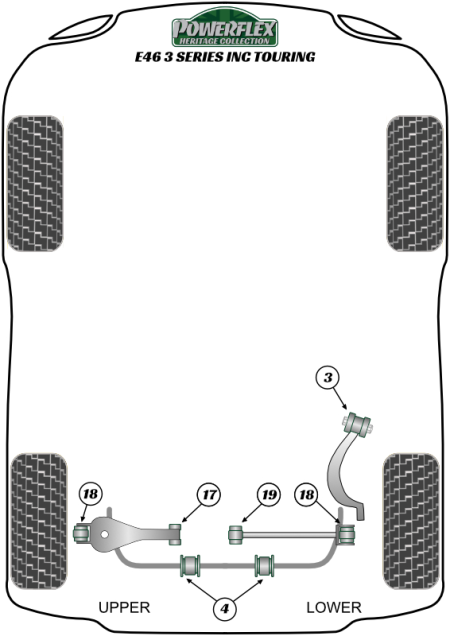

Diagram reference
N/A

Powerflex Handling Pack

PF5K-1003

Retail Price

Per Bush

£ 338.55

Per Car Set

£ 338.55

Bushes
per Car
1

Diagram reference
N/A

PowerAlign Wheel Mounting Guide Pin

PF99-512-15

Retail Price

Per Bush

£ 23.70

Per Car Set

£ 23.70

Bushes
per Car
1

Diagram reference
N/A

Front Wishbone Rear Bush

PFF5-4601

Retail Price

Per Bush

£ 38.85

Per Car Set

£ 77.70

Bushes
per Car
2

Diagram reference
1

Front Wishbone Rear Bush

PFF5-4601-60

Retail Price

Per Bush

£ 33.45

Per Car Set

£ 66.90

Bushes
per Car
2

Diagram reference
1

Front Wishbone Rear Bush, Aluminium Outer

PFF5-5601

Retail Price

Per Bush

£ 68.00

Per Car Set

£ 136.00

Bushes
per Car
2

Diagram reference
1

Front Wishbone Rear Bush, Aluminium Outer

PFF5-5601-60

Retail Price

Per Bush

£ 68.00

Per Car Set

£ 136.00

Bushes
per Car
2

Diagram reference
1

Front Wishbone Rear Bush, Caster Offset

PFF5-5601G

Retail Price

Per Bush

£ 68.00

Per Car Set

£ 136.00

Bushes
per Car
2

Diagram reference
1

Front Wishbone Rear Bush, Caster Offset

PFF5-5601G-60

Retail Price

Per Bush

£ 68.00

Per Car Set

£ 136.00

Bushes
per Car
2

Diagram reference
1

Front Wishbone Rear Bush & Bracket

PFF5K-4601

Retail Price

Per Bush

£ 62.60

Per Car Set

£ 125.20

Bushes
per Car
2

Diagram reference
1

Front Anti Roll Bar Bush 22.5mm

PFF5-4602-22.5

Retail Price

Per Bush

£ 23.70

Per Car Set

£ 47.40

Bushes
per Car
2

Diagram reference
2

Front Anti Roll Bar Bush 23mm

PFF5-4602-23

Retail Price

Per Bush

£ 23.70

Per Car Set

£ 47.40

Bushes
per Car
2

Diagram reference
2

Front Anti Roll Bar Bush 23.5mm

PFF5-4602-23.5

Retail Price

Per Bush

£ 23.70

Per Car Set

£ 47.40

Bushes
per Car
2

Diagram reference
2

Front Anti Roll Bar Bush 24mm

PFF5-4602-24

Retail Price

Per Bush

£ 23.70

Per Car Set

£ 47.40

Bushes
per Car
2

Diagram reference
2

Rear Trailing Arm Bush

PFR5-3608

Retail Price

Per Bush

£ 33.95

Per Car Set

£ 67.90

Bushes
per Car
2

Diagram reference
3

Rear Anti Roll Bar Mounting Bush 15mm

PFR5-504-15

Retail Price

Per Bush

£ 19.15

Per Car Set

£ 38.30

Bushes
per Car
2

Diagram reference
4

Rear Anti Roll Bar Mounting Bush 18mm

PFR5-504-18

Retail Price

Per Bush

£ 19.15

Per Car Set

£ 38.30

Bushes
per Car
2

Diagram reference
4

Rear Anti Roll Bar Mounting Bush 19mm

PFR5-504-19

Retail Price

Per Bush

£ 19.15

Per Car Set

£ 38.30

Bushes
per Car
2

Diagram reference
4

Rear Roll Bar Mounting Bush 20mm

PFR5-504-20

Retail Price

Per Bush

£ 19.15

Per Car Set

£ 38.30

Bushes
per Car
2

Diagram reference
4

Rear Roll Bar Mounting Bush 22.5mm

PFR5-504-22.5

Retail Price

Per Bush

£ 19.15

Per Car Set

£ 38.30

Bushes
per Car
2

Diagram reference
4

Rear Subframe Front Bush

PFR5-4610

Retail Price

Per Bush

£ 53.40

Per Car Set

£ 106.80

Bushes
per Car
2

Diagram reference
10

Rear Subframe Front Bush Insert

PFR5-4614

Retail Price

Per Bush

£ 29.65

Per Car Set

£ 59.30

Bushes
per Car
2

Diagram reference
10

Rear Subframe Rear Bush

PFR5-4611

Retail Price

Per Bush

£ 51.80

Per Car Set

£ 103.60

Bushes
per Car
2

Diagram reference
11

Rear Subframe Rear Bush Insert

PFR5-4613

Retail Price

Per Bush

£ 29.65

Per Car Set

£ 59.30

Bushes
per Car
2

Diagram reference
11

Rear Upper Wishbone Inner Bush

PFR5-4617

Retail Price

Per Bush

£ 34.50

Per Car Set

£ 69.00

Bushes
per Car
2

Diagram reference
17

Rear Lower Wishbone Outer Bush

PFR5-4618

Retail Price

Per Bush

£ 32.90

Per Car Set

£ 65.80

Bushes
per Car
2

Diagram reference
18

Rear Upper Wishbone Outer Bush

PFR5-4618

Retail Price

Per Bush

£ 32.90

Per Car Set

£ 65.80

Bushes
per Car
2

Diagram reference
18

Adjustable Rear Lower Control Arm Kit

PFR5-4615G

Retail Price

Per Bush

£ 161.40

Per Car Set

£ 161.40

Bushes
per Car
1

Diagram reference
19

Rear Lower Wishbone Inner Bush

PFR5-4616

Retail Price

Per Bush

£ 38.30

Per Car Set

£ 76.60

Bushes
per Car
2

Diagram reference
19

Rear Diff Front Bush

PFR5-4625

Retail Price

Per Bush

£ 32.90

Per Car Set

£ 65.80

Bushes
per Car
2

Diagram reference
25

Rear Diff Rear Bush

PFR5-4626

Retail Price

Per Bush

£ 46.95

Per Car Set

£ 46.95

Bushes
per Car
1

Diagram reference
26

Rear Shock Top Mount Bracket and Bush 10mm

PFR5-5630-10

Retail Price

Per Bush

£ 52.35

Per Car Set

£ 104.70

Bushes
per Car
2

Diagram reference
30

Rear Shock Top Mount Bracket and Bush 12mm

PFR5-5630-12

Retail Price

Per Bush

£ 52.35

Per Car Set

£ 104.70

Bushes
per Car
2

Diagram reference
30

Gear Shift Arm Front Bush Round

PFF5-4630

Retail Price

Per Bush

£ 21.55

Per Car Set

£ 21.55

Bushes
per Car
1

Diagram reference
31

Gear Shift Arm Front Bush Oval

PFF5-4631

Retail Price

Per Bush

£ 21.00

Per Car Set

£ 21.00

Bushes
per Car
1

Diagram reference
31

Shift Arm Front Bush Oval

PFF5-4633

Retail Price

Per Bush

£ 21.00

Per Car Set

£ 42.00

Bushes
per Car
2

Diagram reference
31

Shifter Arm Rear Bush

PFF5-4632

Retail Price

Per Bush

£ 31.25

Per Car Set

£ 31.25

Bushes
per Car
1

Diagram reference
32

Exhaust Mounting Bush & Bracket

EXH035

Retail Price

Per Bush

£ 68.00

Per Car Set

£ 68.00

Bushes
per Car
1

Diagram reference
35

Rear ARB End Link to Bracket Bush

PFR5-4645

Retail Price

Per Bush

£ 24.80

Per Car Set

£ 49.60

Bushes
per Car
2

Diagram reference
45

Rear ARB End Link To Bar Bush

PFR5-4646

Retail Price

Per Bush

£ 16.70

Per Car Set

£ 33.40

Bushes
per Car
2

Diagram reference
46

Engine Mount

PFF5-4650

Retail Price

Per Bush

£ 179.75

Per Car Set

£ 359.50

Bushes
per Car
2

Diagram reference
50

Offset Lower Radiator Mount Kit

PFF5-4652

Retail Price

Per Bush

£ 28.05

Per Car Set

£ 28.05

Bushes
per Car
1

Diagram reference
52

Transmission Mounting Bush (Fast Road)

PFF5-4655

Retail Price

Per Bush

£ 40.45

Per Car Set

£ 80.90

Bushes
per Car
2

Diagram reference
55

Transmission Mounting Bush (Track)

PFF5-4655P

Retail Price

Per Bush

£ 40.45

Per Car Set

£ 80.90

Bushes
per Car
2

Diagram reference
55

Clutch Fork Pivot Pin

PFF5-470

Retail Price

Per Bush

£ 21.55

Per Car Set

£ 21.55

Bushes
per Car
1

Diagram reference
70
